Description
Features
• Features an electric/hydraulic power system.
• Dual synchronous cylinders are applied to assure the lifting level on both platforms.
• Platforms are designed to be extended. It can be adjusted for most of the cars.
• Mechanical locking system. The safety release is operated by air cylinders.
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components.

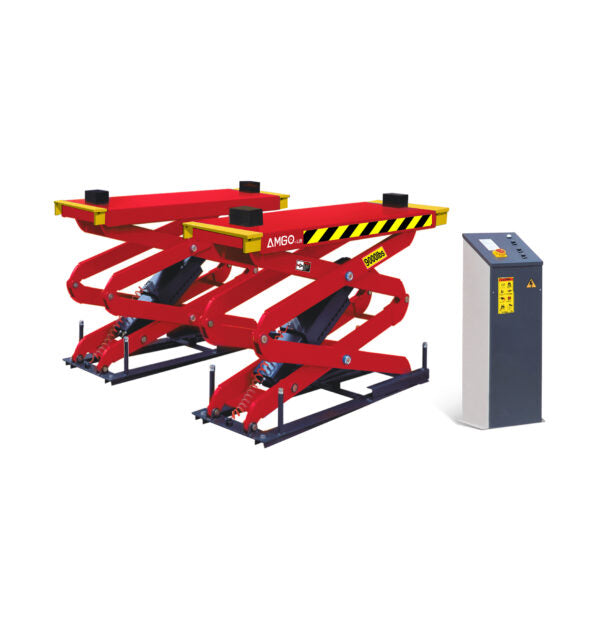

| Model | XL-9F |
| Lifting Capacity | 9,000 lbs (4,000 kg) |
| Lifting Time | 49 S |
| A: Max. Lifting Height | 87 3/4″ (2230mm) |
| B: Minimum Height | 13 3/4″ (350mm) |
| C: Overall Length | 65 1/8″-80 7/8″ (1654-2054mm) |
| D: Overall Width | 74 3/4″ (1900mm) |
| E: Width Between Runways | 31 1/2″ (800mm) |
| Motor | 2.0HP,220V/60Hz,single phase |
| Gross Weight | 2,028 lbs (920 kg) |
Detailed Images

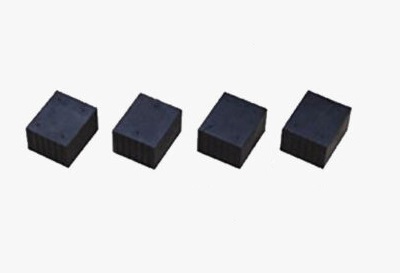

- 3″ height rubber pads included as standard supply.
- Strong tubing makes the lift safer and more durable than the competition.

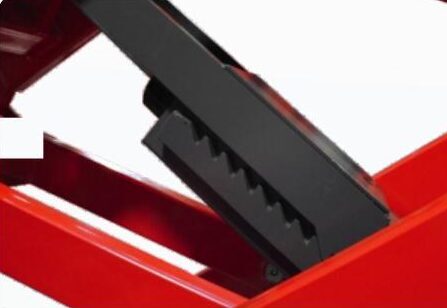

- Mechanical Safety Locks

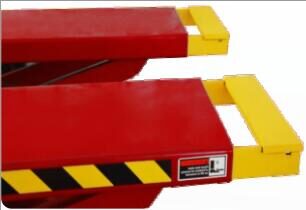

- Extended Platforms.

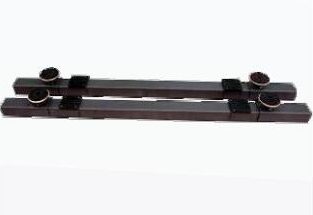

- Leveling bar kits No.:SX003
Shipping Information
