Description
Features
• 24V control system for safety operation
• 2-Dual synchronous cylinders are applied to assure the lifting level on both platforms
• Hydraulic cylinders built with hose burst valves for safety protection
• Both mechanical and hydraulic locking system. This makes it one of the safest small scissors lift in the world
• A safety stop device at the height of 11 7/8″(300mm), both control buttons are needed to lower the lift to ground, tone alarm for added safety.
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

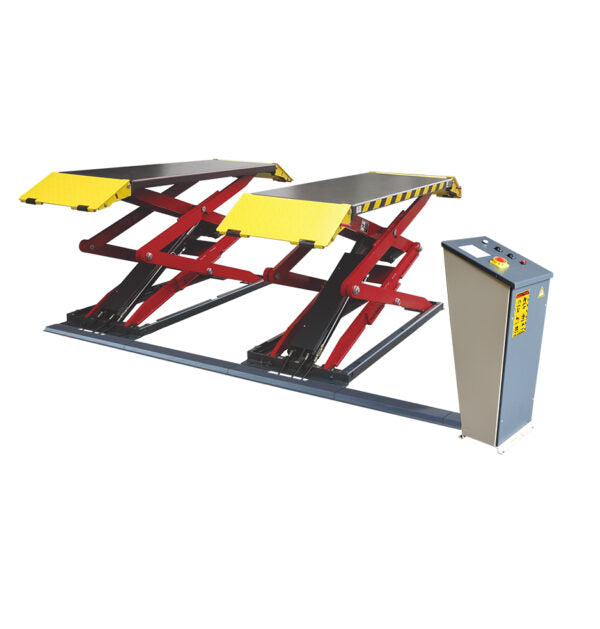

| Model | XL-7 |
| Lifting Capacity | 7,000 lbs |
| Lifting Time | 42 S |
| A1: Max. Lifting Height | 78 3/4″ (2000mm) |
| A2: Minimum Height | 4 1/2″ (115mm) |
| B: Overall Length(Inc Ramps) | 80″ (2032mm) |
| C: Runway Length | 57 5/8″ (1464mm) |
| D: Overall Width | 76 3/4″ (1950mm) |
| E: Width Between Runways | 29 1/2″ (750mm) |
| Motor | 2.0HP,220V/60Hz,single phase |
| Gross Weight | 1,949 lbs (884kg) |
Detailed Images

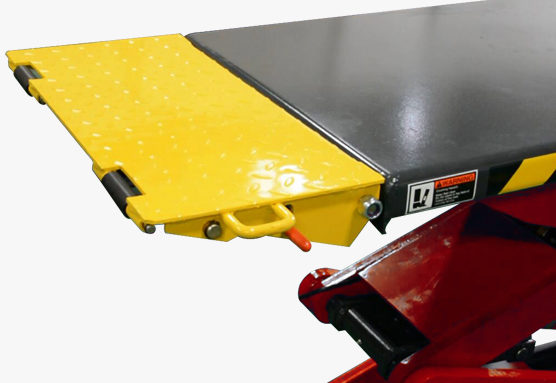

- Adjustable ramps and extended platforms for longer wheelbase vehicles.

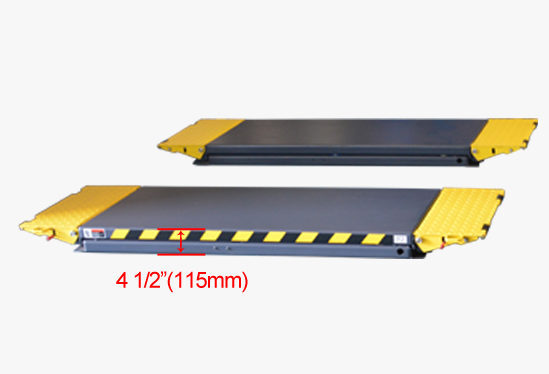

- Low profile design.

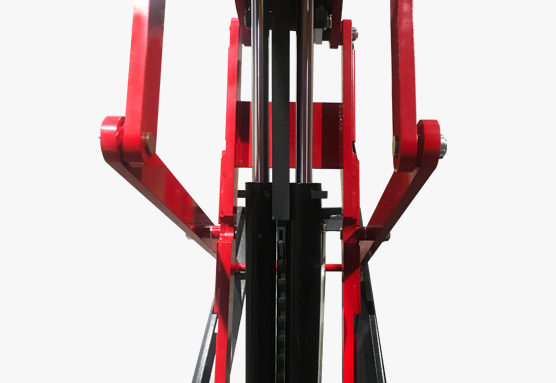

- Mechanical and hydraulic lock system.
- Both 1 1/2″ and 3″ height rubber pads included as standard supply.
- Automatic safety device controlled electronically.

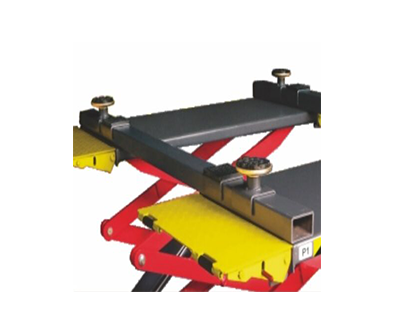

- Support Leveling Bar & Kit. Recommended for heavier vehicles with narrow or wider frames. Kits No.:SX003
