Danbury Automotive Lifts
SPL-6
SPL-6
Regular price
$4,595.00 USD
Regular price
Sale price
$4,595.00 USD
Unit price
per
Couldn't load pickup availability

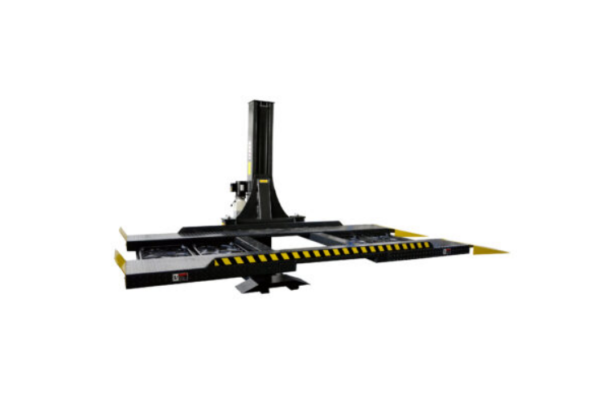

The SPL-6 is our newest single post parking lift. This lift combines AMGO high quality with space saving design and easy operation. The SPL-6 is great fit for home garages and commercial shops.
Click to download Product Brochure
Click to download Product Manual
Description
Features
• 6,000lbs lifting capacity
• Manual safety lock release
• Non slip lifting platform
• H-shaped lifting platform with reinforced column
• Low post height for low ceilings
• Suitable for home garages and commercial applications
• Reversible Drive in ramps (drive in from either side)
• ETL certified power unit
| Model | SPL-6 |
| Lifting Capacity | 6,000lbs |
| Lifting Time | 84s(110V) 32s(220V) |
| A：Overall Height | 108 7/8″ (2766mm) |
| B：Max. Lifting Height | 74″ (1880mm) |
| C：Max. Underneath Height | 69 1/4″ (1760mm) |
| D: Minimum Height | 6 3/8″ (160mm) |
| E：Overall Width | 111″ (2820mm) |
| F：Outside Edge of Runways | 82 3/8″ (2093mm) |
| G：Width Between Runways | 42 3/8″ (1077mm) |
| H：Platform Length | 152″ (3860mm) |
| I：Overall Length | 192 1/8″ (4880mm) |
| Gross Weight | 2,725lbs (1235kg) |
| Motor | 1.0HP/110V 2.0HP/220V |
Optional parts
