Danbury Automotive Lifts
SML-7
SML-7
Regular price
$4,275.00 USD
Regular price
Sale price
$4,275.00 USD
Unit price
per
Couldn't load pickup availability

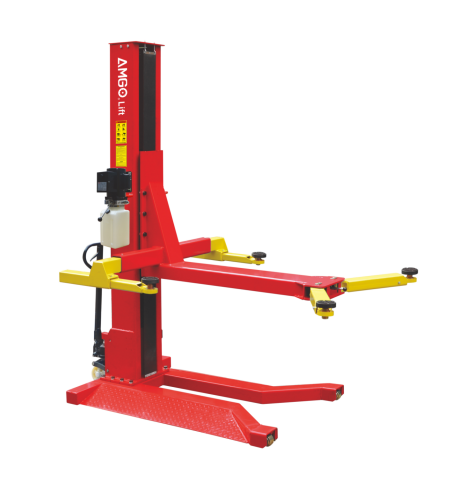

The SML-7 is a portable single-column lift that is perfect for shops or homeowners who don’t want to take up space. The lift allows the operator to walk under the vehicle or move the lift around.
Click to download Product Brochure
Click to download Product Manual
Description
Features
• 7,000lbs capacity, portable single post lift.
• Max. lifting height: 77 3/4″ (1976 mm)
• Min height: 4 3/8″ (110 mm)
• Self-lubricating UHMW Polyethylene sliders and a self-lubricating bronze bushings.
• High quality cylinders and power units are manufactured to high quality standards.
• AMGO 5-3-2 Warranty.
| Model | SML-7 |
| Lifting Capacity | 7,000 lbs |
| Lifting Time | 84S (110V) 32S (220V) |
| A: Lifting height | 72″~77 3/4″ (1830mm ~ 1976mm) |
| B: Overall Height | 108 7/8″ (2766mm) |
| C: Overall Width | 90 3/8″ (2295mm) |
| D: Minimum Pad Height | 4 3/8 “（110 mm） |
| Gross Weight | 1,916 lbs（869 kg） |
| Motor | 1.0HP，110V/60Hz Single Phase 2.0HP，220V/60Hz Single Phase |
Detailed Images
- A manually locking release safety device controls the double locks.
- Two locks, one release. Only available from AMGO.
- Arm locking device with easy release handles.
- Adjustable arms, two stage stretching.
- Features screw and insert rubber pads.
- Portable roller device to easily move the lift.
- “pallet jack” style device allows the lift to move freely to wherever the job may be.
- Dust cloth provides protection to the chain and gives the SML-7 an elegant appearance.
Shipping Information
