Description
Features
• 40,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 3/4″ aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and made to high quality standards
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed
• Optional Rolling Jacks:
– RJ-20A 20,000lbs pneumatic pump

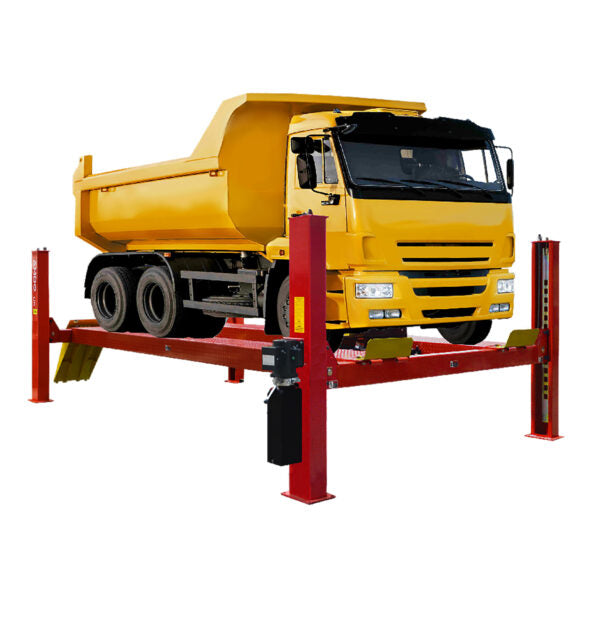

| Model | PRO-40 |
| Lifting Time | 176s |
| A: Overall Length (Inc. Ramps) | 366 1/8″ (9300mm) |
| B: Overall Length (No. Ramps) | 315 1/2″ (8014mm) |
| C: Overall Width | 161 3/8″ (4100mm) |
| D: Width Between Columns | 143 7/8″ (3654mm) |
| E: Max. Lifting Height | 74 3/4″ (1900mm) |
| F: Overall Height | 91 7/8″ (2332mm) |
| G: Minimum Height | 10 1/2″ (265mm) |
| H: Max. Underneath Height | 65 7/8″ (1674mm) |
| I: Drive-Thru Clearance | 129 7/8″ (3298mm) |
| J: Width Between Runways | 58 7/8″ (1496mm) |
| K: Outside Edge of Runways | 114 7/8″ (2916mm) |
| Gross Weight | 8,320 lbs (3,774 kg) |
| Motor | 2.0HP, 220V/60Hz Single Phase |
Detailed Images
- Air control safety device.
- Optional airline kit. Easy to install with all models of rolling jacks with pneumatic pump accessories. Kits No.: 40106
- Optional LED light kits is fitted for every model of AMGO 4-post lifts. LED Kits No.:40103
- Optional Rolling Jacks: RJ-20A 20,000lbs
