Description
Features
• 18,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 1/2″ aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and made to high quality standards
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed
Optional Rolling Jacks:
-RJ-10A: pneumatic hydraulic type 10,000lbs (4,500kg)
More choices:
-Optional led lights: No. 40103
-Optional extension kits: No. 41801
-Optional air line kits: No. 40102
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

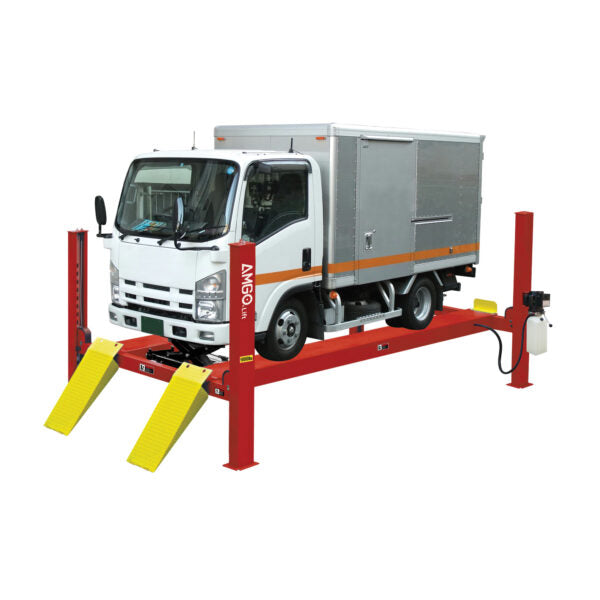

| Model | PRO-18 |
| Style | Non-Alignment |
| Lifting Capacity | 18,000 lbs (8,000 kg) |
| Lifting Time | 92S |
| A: Overall Length (Inc.Ramps) | 293 1/4″ (7449mm) |
| B: Overall Length (No.Ramps) | 252 1/4″ (6408mm) |
| C: Overall Width | 137 1/8″ (3482mm) |
| D: Width Between Columns | 122 3/8″ (3108mm) |
| E: Max. Lifting Height | 73 1/2″ (1865mm) |
| F: Overall Height | 86″ (2185mm) |
| G: Minimum Height | 7 7/8″ (200mm) |
| H: Max. Underneath Height | 66 5/8″ (1692mm) |
| I: Drive-Thru Clearance | 108 1/4″ (2750mm) |
| J: Width Between Runways | 51 1/4″ (1302mm) |
| K: Outside Edge of Runways | 95 1/4″ (2418mm) |
| Gross Weight | 3,483lbs (1,580kg) |
| Motor | 2.0HP, 220V/60Hz Single Phase |
Detailed Images
- Air control safety device.
- Double-safety locks
- High grade cylinders made to high quality standards, NOK seals, strict quality control and testing.
- Optional airline kit. Easy to install with all models of rolling jacks with pneumatic pump accessories. Kit No.:40102
- Optional length extension kits adds an extra 29″ (737mm) length to the platform. Kits No.: 41801
- Optional LED light kits is fitted for every model of AMGO 4-post lifts. LED Kits No.:40103
