Danbury Automotive Lifts

PRO-14E

PRO-14E

Regular price $6,150.00 USD
Regular price Sale price $6,150.00 USD
Sale Sold out

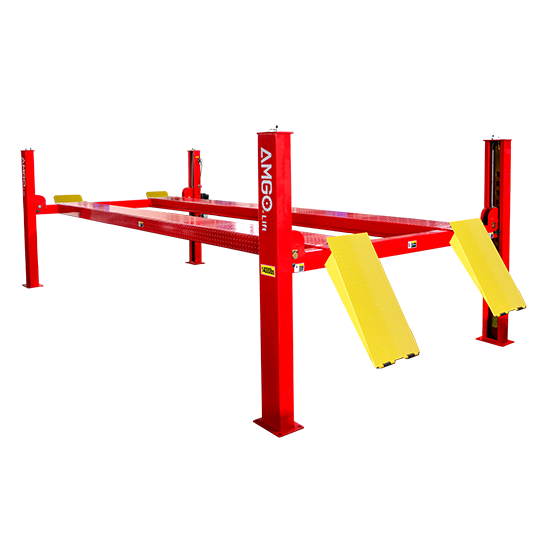

AMGO powerful 4-post lift provides a 14,000 lbs lifting capacity and features extra long runways to accommodate a wide variety of vehicle types and wheel bases.

Click to download Product Brochure

Click to download Product Manual

Description

Features

• 14,000 lbs capacity.

• Air-released safety lock for convenient operation and reliability.

• Mechanical self-lock and cable-breaking protection.

• 1/2″ aircraft quality cable.

• Skid proof diamond platform.

• Hydraulic cylinders are designed and made to high quality standards.

• Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 47”(1194mm) and maximum distance is 54 1/2”(1385mm).

• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed.

Optional Rolling Jacks:
-RJ-8A: pneumatic hydraulic type 8,000lbs (3,500kg)
-RJ-10A: pneumatic hydraulic type 10,000lbs (4,500kg)

More choices:
-Optional led lights: No. 40103
-Optional extension kits: No. 41403
-Optional air line kits: No. 40102

• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components.

Model PRO-14E
Style Non-Alignment
Lifting Capacity 14,000 lbs (6,500 kg)
Lifting Time 76S
A: Overall Length (Inc.Ramps) 286″ (7265mm)
B: Overall Length (No.Ramps) 245″ (6224mm)
C: Overall Width 130 7/8″ (3324mm)
D: Width Between Columns 116″ (2946mm)
E: Max. Lifting Height 73 1/2″ (1865mm)
F: Overall Height 86″ (2185mm)
G: Minimum Height 7 7/8″ (200mm)
H: Max.Underneath Height 66 3/4″ (1695mm)
I: Drive-Thru Clearance 102 1/8″ (2592mm)
J: Width Between Runways 47″ (1194mm), Max. 54 1/2″ (1385mm)
K: Outside Edge of Runways 87″ (2210mm), Max. 94 1/2″ (2401mm)
Gross Weight 2,945lbs (1,336kg)
Motor 2.0HP, 220V/60Hz Single Phase
