Description
Features
• 14,000 lbs capacity.
• Air-released safety lock for convenient operation and reliability.
• Mechanical self-lock and cable-breaking protection.
• 1/2″ aircraft quality cable.
• Skid proof diamond platform.
• Hydraulic cylinders are designed and made to high quality standards.
• Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 47”(1194mm) and maximum distance is 54 1/2”(1385mm).
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed.
Optional Rolling Jacks:
-RJ-8A: pneumatic hydraulic type 8,000lbs (3,500kg)
-RJ-10A: pneumatic hydraulic type 10,000lbs (4,500kg)
More choices:
-Optional led lights: No. 40103
-Optional extension kits: No. 41403
-Optional air line kits: No. 40102
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components.

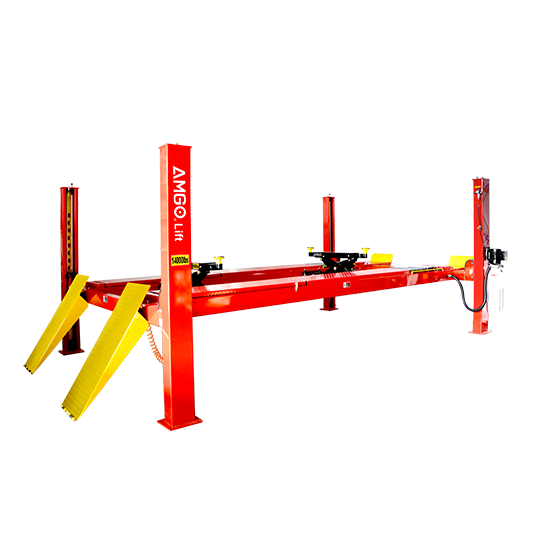

Model | PRO-14E |
Style | Non-Alignment |
Lifting Capacity | 14,000 lbs (6,500 kg) |
Lifting Time | 76S |
A: Overall Length (Inc.Ramps) | 286″ (7265mm) |
B: Overall Length (No.Ramps) | 245″ (6224mm) |
C: Overall Width | 130 7/8″ (3324mm) |
D: Width Between Columns | 116″ (2946mm) |
E: Max. Lifting Height | 73 1/2″ (1865mm) |
F: Overall Height | 86″ (2185mm) |
G: Minimum Height | 7 7/8″ (200mm) |
H: Max.Underneath Height | 66 3/4″ (1695mm) |
I: Drive-Thru Clearance | 102 1/8″ (2592mm) |
J: Width Between Runways | 47″ (1194mm), Max. 54 1/2″ (1385mm) |
K: Outside Edge of Runways | 87″ (2210mm), Max. 94 1/2″ (2401mm) |
Gross Weight | 2,945lbs (1,336kg) |
Motor | 2.0HP, 220V/60Hz Single Phase |
