Description
Features
• 14,000 lbs Capacity
• Air-Lock Released for Safety and Reliability of Convenient Operation
• Mechanical Self-Lock and Cable-Breaking Protection
• 1/2″ Aircraft at Quality Cable
• Hydraulic cylinders are designed and made to high quality standards
• Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 47”(1194mm) and maximum distance is 54 1/2”(1385mm).
• Skid Proof Diamond Platform
Optional Rolling Jacks:
-RJ-8A: pneumatic hydraulic type 8,000lbs (3,500kg)
-RJ-10A: pneumatic hydraulic type 10,000lbs (4,500kg)
More choices:
-Optional led lights: No. 40103
-Optional extension kits: No. 41403
-Optional air line kits: No. 40102
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

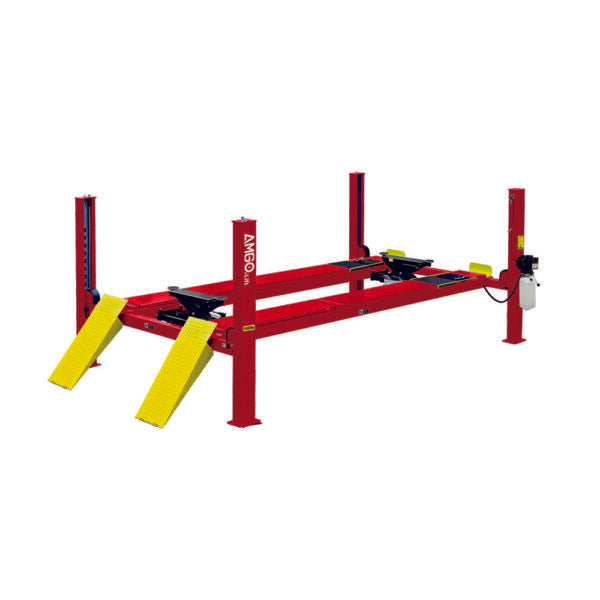

| Model | PRO-14A |
| Style | Alignment |
| Lifting Capacity | 14,000 lbs (6,500kg) |
| Lifting Time | 76S |
| A: Overall Length (Inc.Ramps) | 257″ (6528mm) |
| B: Overall Length (No.Ramps) | 216 1/2″ (5500mm) |
| C: Overall Width | 130 7/8″ (3324mm) |
| D: Width Between Columns | 116″ (2946mm) |
| E: Max. Lifting Height | 75 3/8″ (1915mm) |
| F: Overall Height | 86″ (2185mm) |
| G: Minimum Height | 9 7/8″ (250mm) |
| H: Max. Underneath Height | 66 3/4″ (1695mm) |
| I: Drive-Thru Clearance | 102 1/8″ (2592mm) |
| J: Width Between Runways | 47″ (1194mm), Max. 54 1/2″ (1385mm) |
| K: Outside Edge of Runways | 87″ (2210mm), Max. 94 1/2″ (2401mm) |
| L: Min. Four Wheel Align | 92 1/2″ (2350mm) |
| M: Max. Four Wheel Align | 169 5/8″ (4310mm) |
| N: Max. Two Wheel Align | 175 1/4″ (4450mm) |
| Gross Weight | 3,400 lbs (1,542kg) |
| Motor | 2.0HP, 220V/60Hz Single Phase |
Detailed Images
- Air control safety device.
- Double-safety locks
- Adjustable turnplate blocks. Optional turnplate. Kit No.: 40101
- High grade cylinders made to high quality standards, NOK seals, strict quality control and testing.
- Optional airline kit. Easy to install with all models of rolling jacks with pneumatic pump accessories. Kit No.:40102
- Optional LED light.Kit No.40103
- Optional length extension kits adds an extra 26″(660mm)length to the platform. Kits No.: 41403.

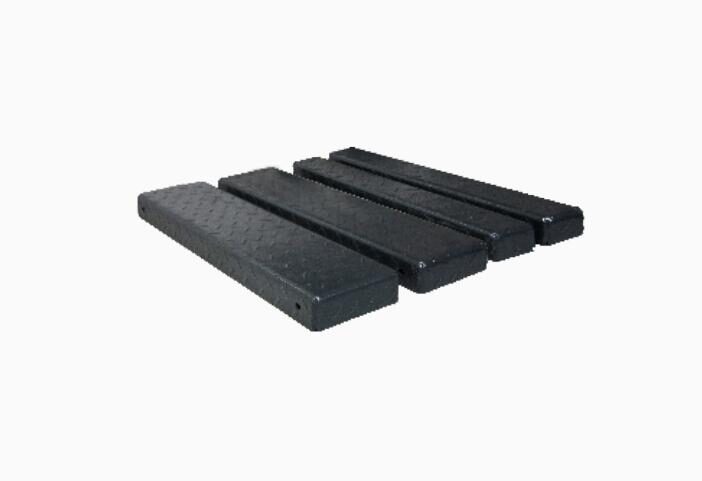

- Optional adjustable blocks for alignment 4 post lift. Kits No.:40905(used with kits 41203）
