Description
Features
• 14,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 1/2″ aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and made to high quality standards
• Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 47”(1194mm) and maximum distance is 54 1/2”(1385mm).
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed
Optional Rolling Jacks:
-RJ-8A: pneumatic hydraulic type 8,000lbs (3,500kg)
-RJ-10A: pneumatic hydraulic type 10,000lbs (4,500kg)
More choices:
-Optional led lights: No. 40103
-Optional extension kits: No. 41403
-Optional air line kits: No. 40102
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

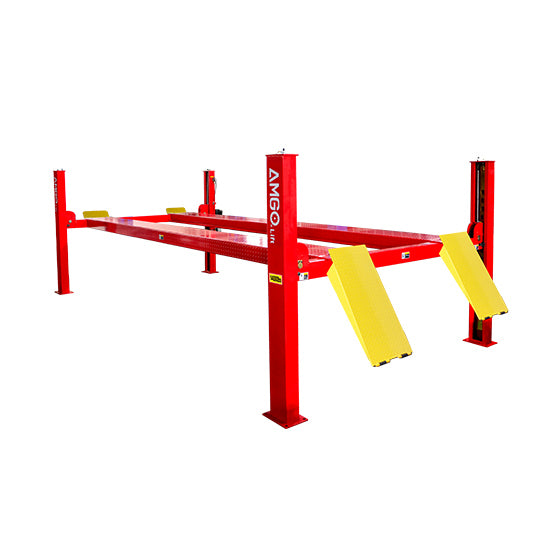

| Model | PRO-14 |
| Style | Non-Alignment |
| Lifting Capacity | 14,000 lbs (6,500 kg) |
| Lifting Time | 76S |
| A: Overall Length (Inc.Ramps) | 257 1/2″ (6541mm) |
| B: Overall Length (No.Ramps) | 216 1/2″ (5500mm) |
| C: Overall Width | 130 7/8″ (3324mm) |
| D: Width Between Columns | 116″ (2946mm) |
| E: Max. Lifting Height | 73 1/2″ (1865mm) |
| F: Overall Height | 86″ (2185mm) |
| G: Minimum Height | 7 7/8″ (200mm) |
| H: Max. Underneath Height | 66 3/4″ (1695mm) |
| I: Drive-Thru Clearance | 102 1/8″ (2592mm) |
| J: Width Between Runways | 47″ (1194mm), Max. 54 1/2″ (1385mm) |
| K: Outside Edge of Runways | 87″ (2210mm), Max. 94 1/2″ (2401mm) |
| Gross Weight | 2,791lbs (1,266kg) |
| Motor | 2.0HP, 220V/60Hz Single Phase |
Detailed Images
- Air control safety device.
- Double-safety locks
- High grade cylinders made to high quality standards, NOK seals, strict quality control and testing.
- Optional airline kit. Easy to install with all models of rolling jacks with pneumatic pump accessories. Kit No.:40102
- Optional length extension kits adds an extra 26″(660mm)length to the platform. Kits No.: 41403.
- Optional LED light kits is fitted for every model of AMGO 4-post lifts. LED Kits No.:40103
