Description
Features
• 12,000 lbs lifting capacity.
• Air-released safety lock for convenient operation and reliability.
• Mechanical self lock and cable breaking protection.
• 3/8″ Aircraft quality cable.
• Optional adjustable turnplate pockets to fit different wheel bases.
• Skid proof diamond platform.
• Hydraulic cylinders are designed and Made to high quality standards.
Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 43 1/4”(1100mm) and maximum distance is 53 3/4”(1365mm).
• Strict quality control of cylinders with flow restrictors to keep a constant low speed.
• Optional Rolling Jacks:
-J6H 6,000lbs manual control
-J6A 6,000lbs pneumatic pump
– Front Turnplates No. 40101
• More choices:
-Optional led lights: No. 40103
-Optional extension kits: No. 40903
-Optional air line kits: No. 40102.
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components.

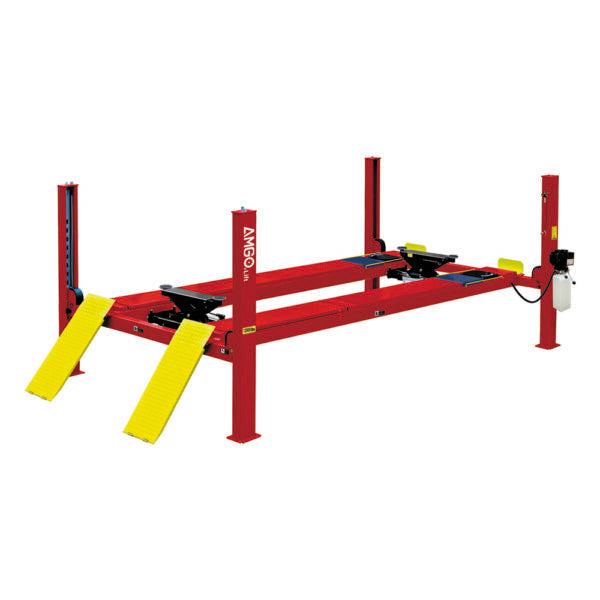

| Model | PRO-12ASX |
| Style | Alignment |
| Lifting Capacity | 12,000 lbs (5,500 kg) |
| Lifting Time | 45S |
| A: Overall Length (Inc.Ramps) | 232 5/8″ (5910mm) |
| B: Overall Length (No.Ramps) | 196 3/4″ (4998mm) |
| C: Overall Width | 132 1/8″ (3356mm) |
| D: Width Between Columns | 118 1/8″ (3000mm) |
| E: Max. Lifting Height | 75 3/8″ (1915mm) |
| F: Overall Height | 86″ (2185mm) |
| G: Minimum Height | 8 5/8″ (220mm) |
| H: Max. Underneath Height | 67 7/8″ (1724mm) |
| I: Drive-Thru Clearance | 104 1/8″ (2646mm) |
| J: Width Between Runways | 43 1/4″ (1100mm), Max. 53 3/4″ (1365mm) |
| K: Outside Edge of Runways | 83 1/4″ (2116mm), Max. 93 3/4″ (2381mm) |
| L: Min. Four Wheel Align | 81 7/8″ (2080mm) |
| M: Max. Four Wheel Align | 151 5/8″ (3850mm) |
| N: Max. Two Wheel Align | 157 1/2″ (4000mm) |
| Gross Weight | 2,798 lbs (1,269 kg) |
| Motor | 2.0HP, 220V/60Hz Single Phase |
Detailed Images
- Air control safety device.
- Double-safety locks
- High grade cylinders made to high quality standards, NOK seals, strict quality control and testing.

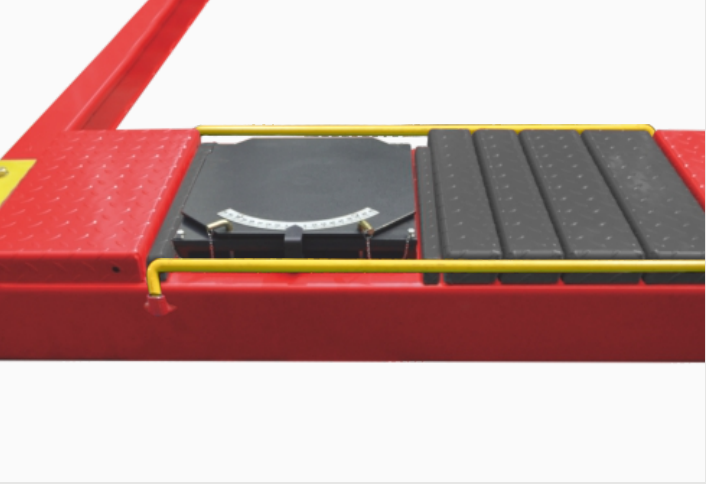

- Adjustable turnplate blocks. Optional turnplate. Kit No.: 40101
- Optional Rolling Jacks: J6A:Pneumatic hydraulic type 6,000lbs;
- Optional Rolling Jack: J6H: 6,000 lbs with manual pump
- Optional airline kit. Easy to install with all models of rolling jacks with pneumatic pump accessories. Kit No.:40102
- Optional length extension kits adds an extra 26″ (660mm) length to the platform. Kits No.: 40903

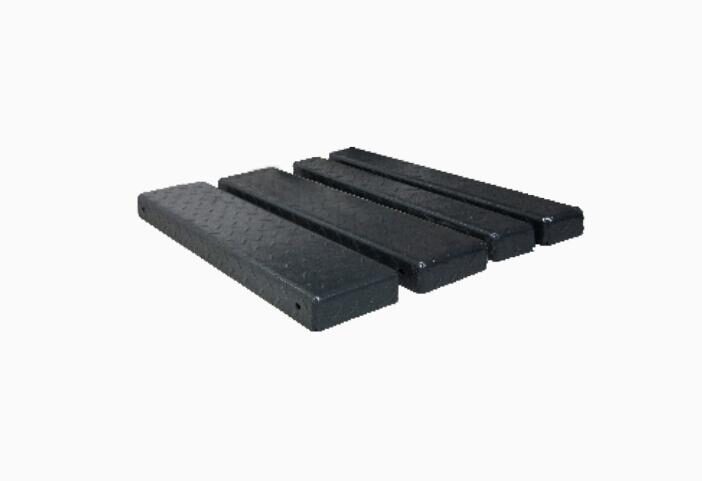

- Optional adjustable blocks for alignment 4 post lift. Kits No.:40905(used with kits 40903）
- Optional LED light.Kit No.40103
