Description
Features
• 12,000 lbs Capacity
• Air-Lock Released for Safety and Reliability of Convenient Operation
• Mechanical Self-Lock and Cable-Breaking Protection
• 1/2″ Aircraft at Quality Cable
• Hydraulic cylinders are designed and made to high quality standards
• Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 43 1/4”(1100mm) and maximum distance is 51 1/8”(1300mm).
• Skid Proof Diamond Platform
Optional Rolling Jacks:
-J6H 6,000lbs manual pump
-J6A 6,000lbs pneumatic pump
More choices:
-Optional led lights: No. 40103
-Optional extension kits: No. 41203
-Optional air line kits: No. 40102
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

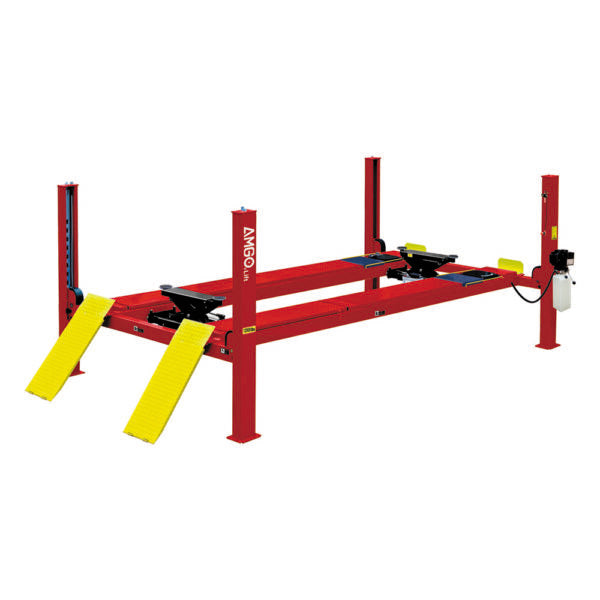

| Model | PRO-12A |
| Style | Alignment |
| Lifting Capacity | 12,000 lbs (5,500kg) |
| Lifting Time | 63S |
| A: Overall Length (Inc.Ramps) | 236 5/8″ (6012mm) |
| B: Overall Length (No.Ramps) | 200 3/4″ (5100mm) |
| C: Overall Width | 126 1/4″ (3208mm) |
| D: Width Between Columns | 112 1/4″ (2852mm) |
| E: Max. Lifting Height | 75 3/8″ (1915mm) |
| F: Overall Height | 86″ (2185mm) |
| G: Minimum Height | 8 5/8″ (220mm) |
| H: Max. Underneath Height | 67 7/8″ (1724mm) |
| I: Drive-Thru Clearance | 98 3/8″ (2498mm) |
| J: Width Between Runways | 43 1/4″ (1100mm), Max. 51 1/8″ (1300mm) |
| K: Outside Edge of Runways | 83 1/4″ (2116mm), Max. 91 1/8″ (2316mm) |
| L: Min. Four Wheel Align | 78 3/4″ (2000mm) |
| M: Max. Four Wheel Align | 155 7/8″ (3960mm) |
| N: Max. Two Wheel Align | 161 3/8″ (4100mm) |
| Gross Weight | 2,901 lbs (1,316kg) |
| Motor | 2.0HP, 220V/60Hz Single Phase |
Detailed Images
- Air control safety device.
- Double-safety locks
- High grade cylinders made to high quality standards, NOK seals, strict quality control and testing.
- Adjustable turnplate blocks. Optional turnplate. Kit No.: 40101
- Optional airline kit. Easy to install with all models of rolling jacks with pneumatic pump accessories. Kit No.:40102

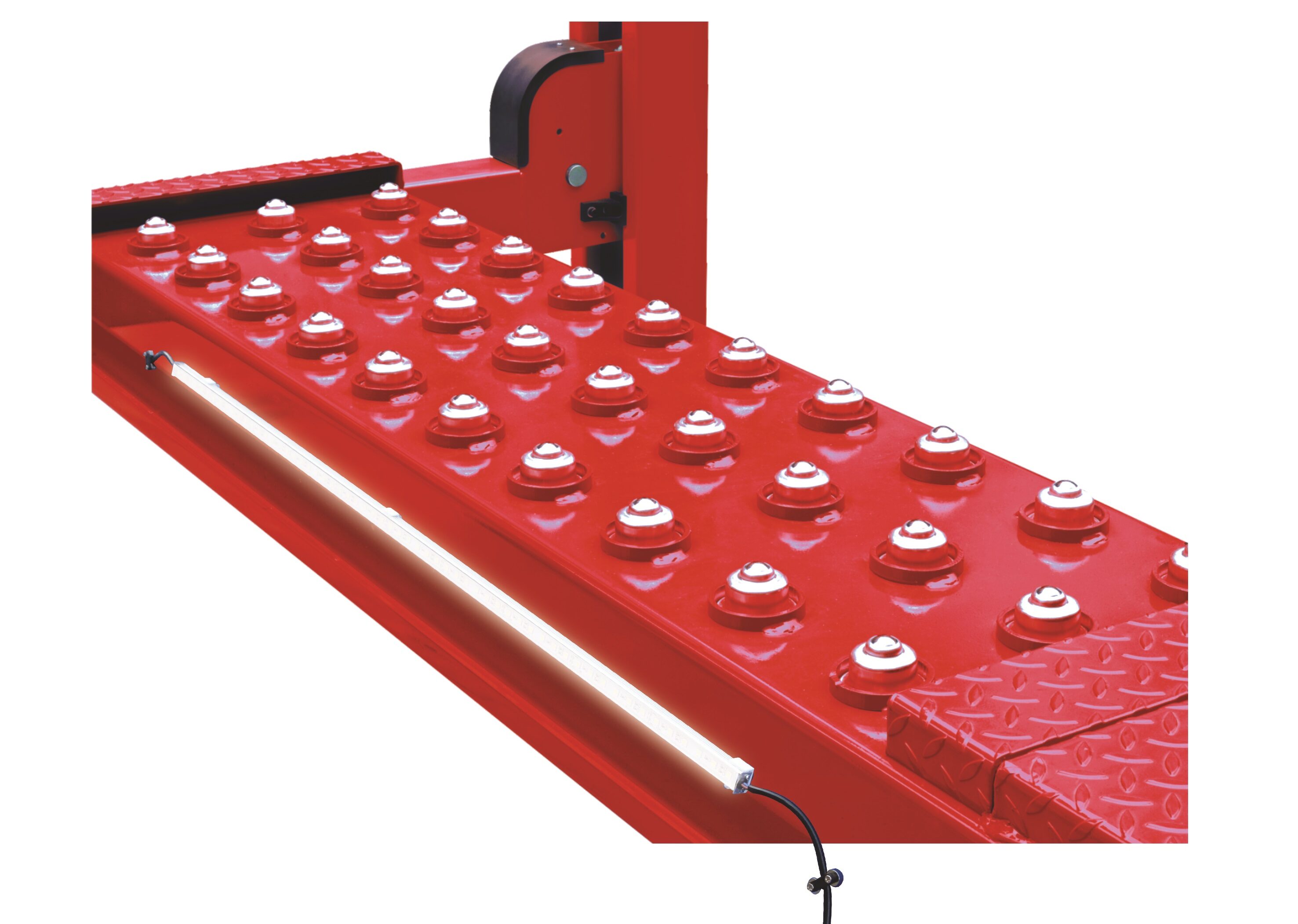

- Optional LED light.Kit No.40103
- Optional length extension kits adds an extra 26″ (660mm) length to the platform. Kits No.: 41203
- Optional adjustable blocks for alignment 4 post lift. Kits No.:40905(used with kits 41203）
- Optional Rolling Jacks: J6A:Pneumatic hydraulic type 6,000lbs;
- Optional Rolling Jack: J6H: 6,000 lbs with manual pump
