OHX-10H
OHX-10H
Couldn't load pickup availability

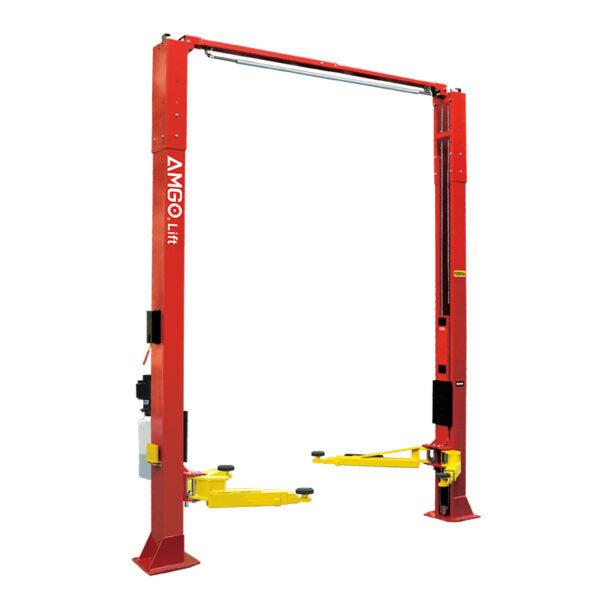

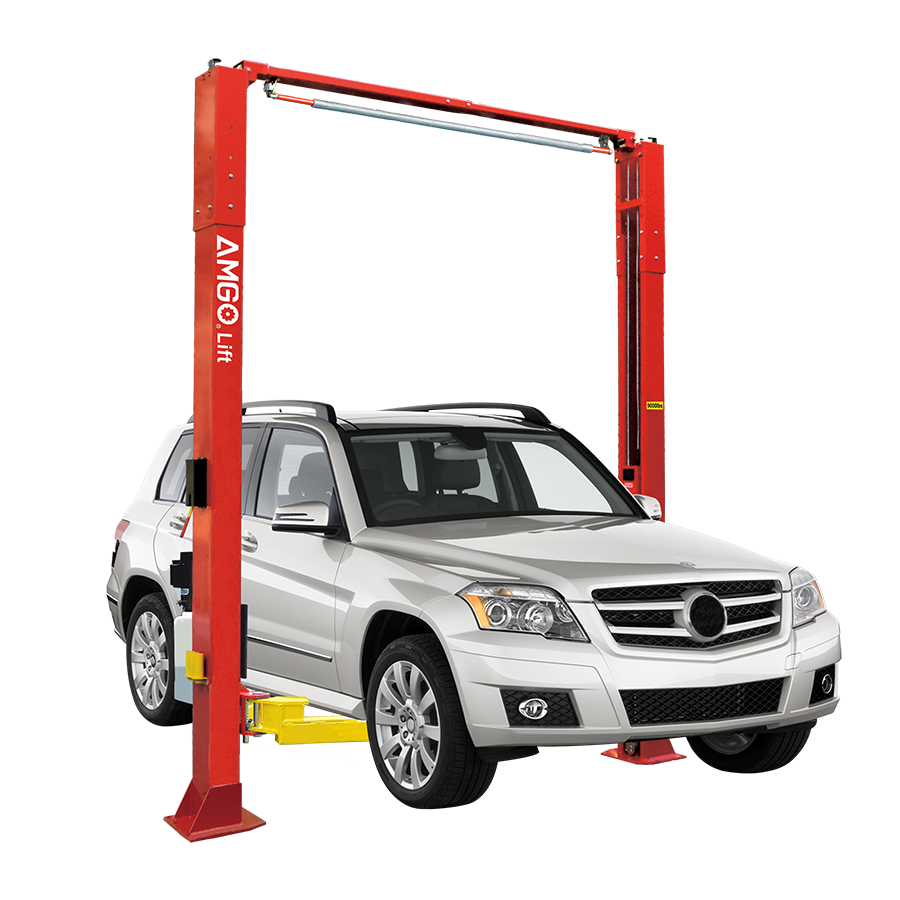

The OHX-10H is the extremely high lifting model with lifting height up to 78 3/4″ ~ 87 3/4″. Height & Width adjustment. The lift is designed with super asymmetric arms and share many same features as model OHX-10.
Click to download Product Brochure
Click to download Product Manual
Description
Features
• Dual hydraulic cylinders, designed and made on high standard, high quality seals.
• Super Asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration.

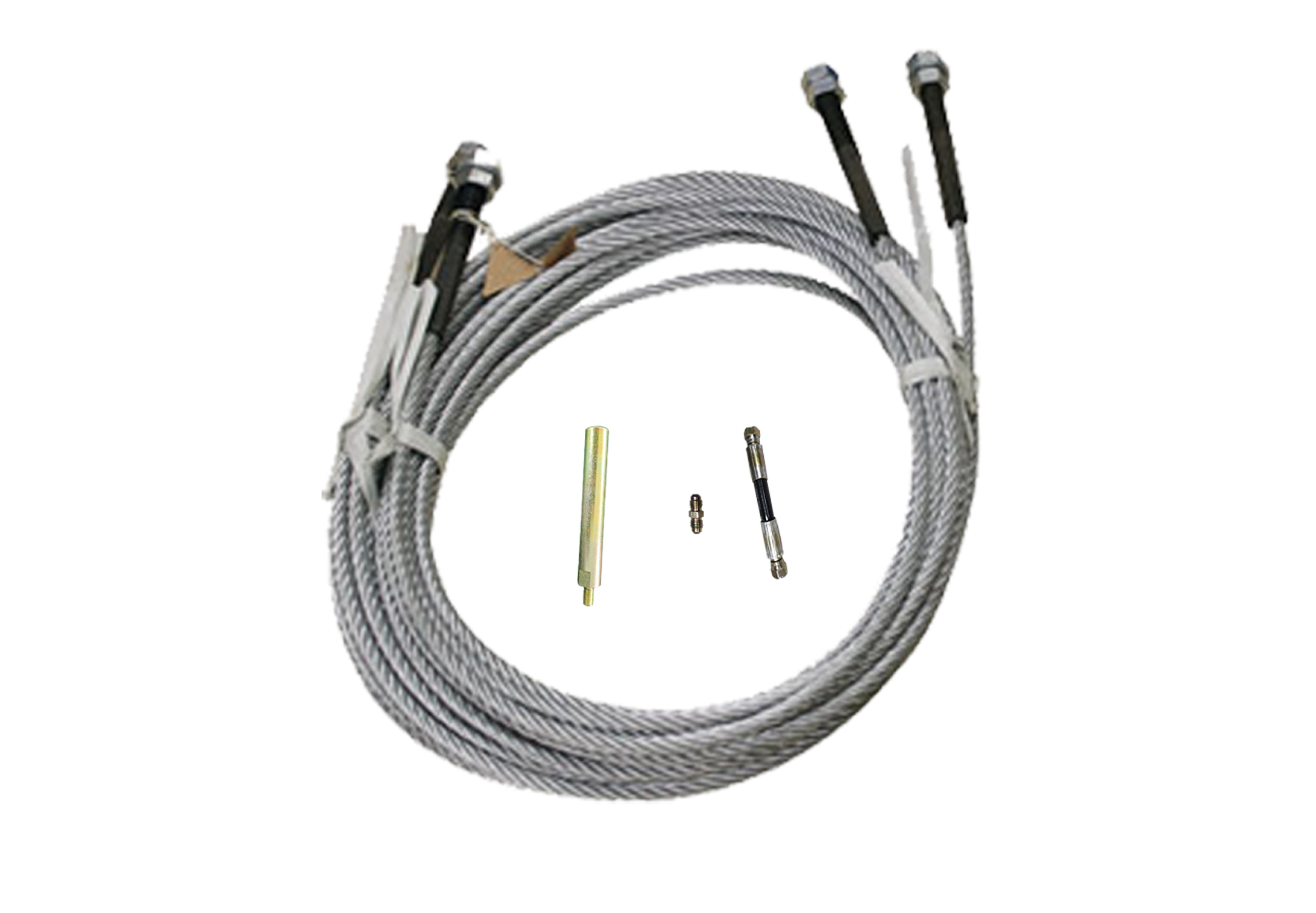

• 3/8″ aircraft quality cable is used for synchronization.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety stop device.
• Automatic arm restraints keep the arms locked in their proper positions.
• Adjustable heights for OHX-10H.
• Stackable adapters 1.5″, 2.5″, 5″ as standard.
• The height and width are adjustable.
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components.
| Model | OHX-10H |
| Lifting Capacity | 10,000 lbs（4,536 kg） |
| Lifting Time | 63S |
| A: Lifting Height | 78 3/4″ ~ 87 3/4″ (2000~2229mm) |
| B: Overall Height | 157″~168″ (3988~4267mm) |
| C: Overall Width | 135″ ~ 140 7/8″ (3428 ~ 3578mm) |
| D: Drive Thru Clearance | 99 1/2″ ~ 105 1/2″ (2528 ~ 2678mm) |
| E: Width Between Columns | 112 1/4″ ~ 118 1/8″ (2850 ~ 3000mm) |
| F: Minimum Pad Height | 3 1/2 “（90 mm） |
| Motor | 2.0HP / 220V/60Hz, Single Phase |
| Gross Weight | 1,744 lbs（791 kg） |
Detailed Images

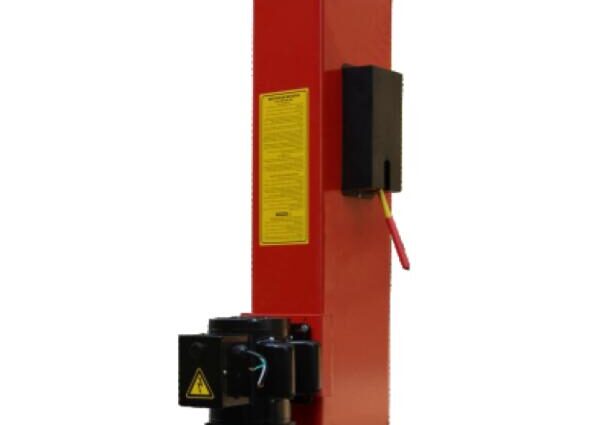

- Single point safety release makes it easier for operators to unlock both column locks from one column.
- Lifting arm lock automatic release device, high strength gear rack, more stable and safer.
- Dual hydraulic direct-driven cylinders
- Super asymmetric arms allow you to load different vehicles in an asymmetric or symmetric configuration. Self-lubricating UHMW polyethylene sliders, rubber door guards to protect your vehicle.
- The stackable rubber pads package with 1.5″, 2.5″, 5″ extension adapters.

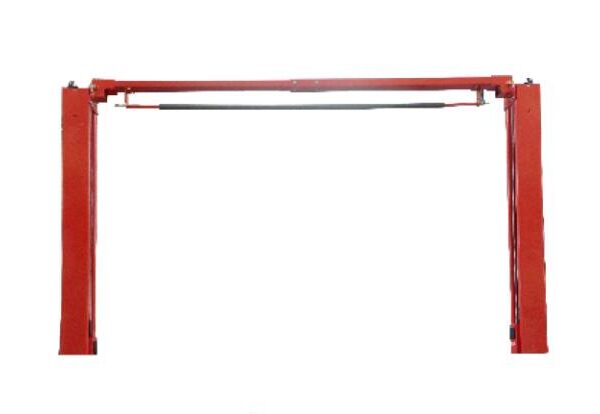

- The top beam is designed with adjustment to fit different width demand. Overhead safety shut-off device prevents vehicle damags.
- Optional Saddle adaptors perfect choice for wide size SUV vehicles. Kits No.:20802
- Optional Width Extension Kits With these kits the width between posts is adjusted from 2850mm(112-1/4″) to 3000mm(118-1/8″) Kits No.: 21004(OHX-10) Kits No.: 21005(OHX-10H).
- Optional LED light for all two post lifts. Floor plate two post lifts LED light，Kits No.:20101; Clear floor two post lifts LED light，Kits 20101 plus extension cable 20103
