OHX-10
OHX-10
Couldn't load pickup availability

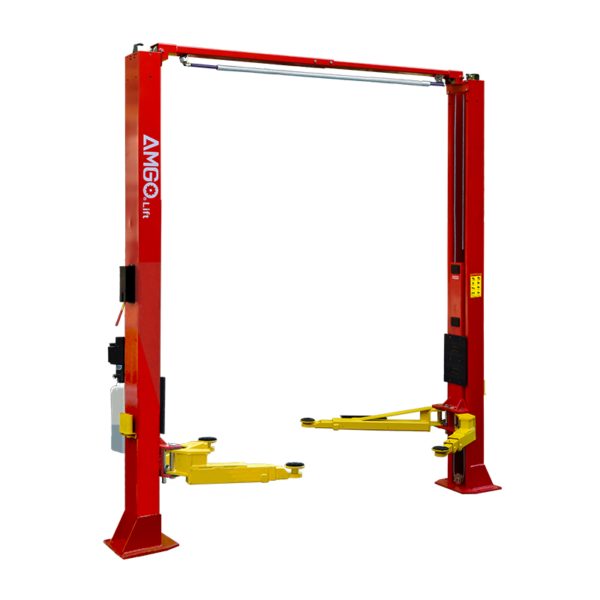

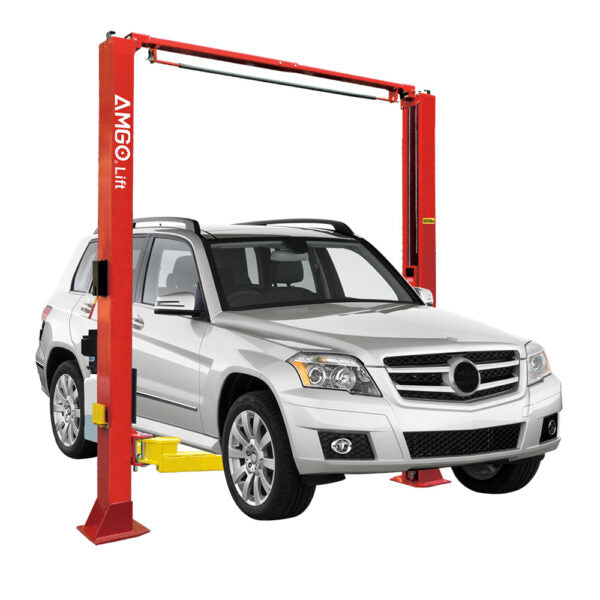

The OHX-10 is designed with super asymmetric arms that can be configured with symmetric and asymmetric. The very long carriages design makes the lift working much smoothly and reliable. The top beam is designed to be adjusted in length, so it is easy to install the OHX-10 with about 6″ wider by using the width extension kits.
Click to download Product Brochure
Click to download Product Manual
Description
Features
• Dual direct drive hydraulic cylinders made to high standards
• Super Asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration
• Single point safety release, allows the operator to disengage both columns simultaneously
• Self lubricating UHMW Polyethylene sliders and bronze bushings
• Clear floor design, provides unobstructed floor use
• Single piece column allowing for easier installation
• Stackable rubber pads and 1.5″, 2.5″, 5″
• Width adjustable kit optional. Part #21004
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components
| Model | OHX-10 |
| Lifting Capacity | 10,000 lbs (4,536 kg) |
| Lifting Time | 57S |
| A: Lifting Height | 71 1/2″ ~ 80 1/2″ (1815~2044mm) |
| B: Overall Height | 144″ (3658mm) |
| C: Overall Width | 135″ / 140 7/8″ (3428/3578mm) |
| D: Drive Thru Clearance | 99 1/2″ / 105 1/2″ (2528/2678mm) |
| E: Width Between Columns | 112 1/4″ / 118 1/8″ (2850/3000mm) |
| F: Minimum Pad Height | 3 1/2″ (90mm) |
| Motor | 2.0HP/220V/60Hz, Single Phase |
| Gross Weight | 1,620 lbs (735 kg) |
Detailed Images
- Single point safety release makes it easier for operators to unlock both column locks from one column.
- Lifting arm lock automatic release device, high strength gear rack, more stable and safer.
- Dual hydraulic direct-driven cylinders
- Super asymmetric arms allow you to load different vehicles in an asymmetric or symmetric configuration. Self-lubricating UHMW polyethylene sliders, rubber door guards to protect your vehicle.
- The stackable rubber pads package with 1.5″, 2.5″, 5″ extension adapters.
- The top beam is designed with adjustment to fit different width demand. Overhead safety shut-off device prevents vehicle damags.
- Optional Saddle adaptors perfect choice for wide size SUV vehicles. Kits No.:20802
- Optional Width Extension Kits With these kits the width between posts is adjusted from 2850mm(112-1/4″) to 3000mm(118-1/8″) Kits No.: 21004(OHX-10) Kits No.: 21005(OHX-10H).
- Optional LED light for all two post lifts. Floor plate two post lifts LED light，Kits No.:20101; Clear floor two post lifts LED light，Kits 20101 plus extension cable 20103
