OH-9
OH-9
Couldn't load pickup availability

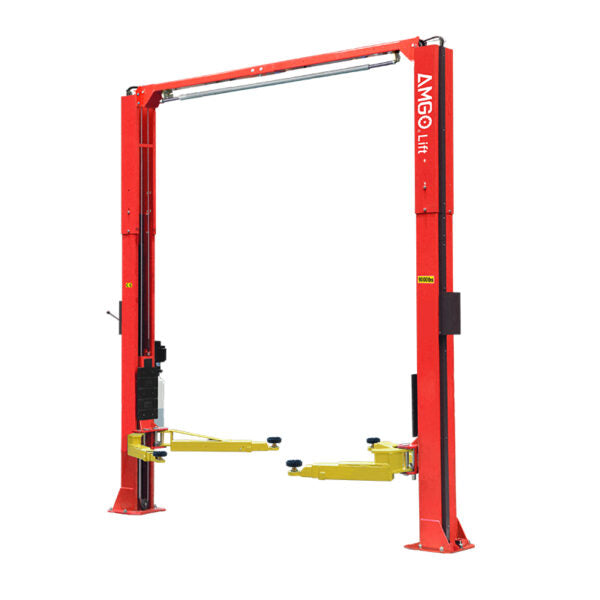

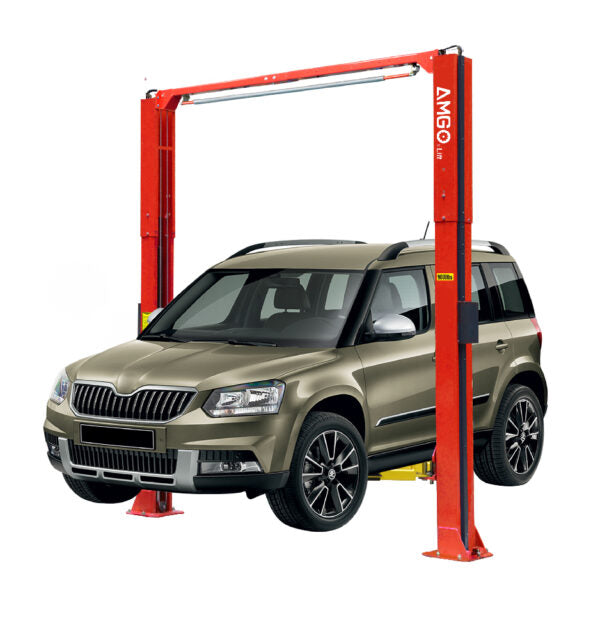

Our OH-9 fits in garages with 12.5 ft ceilings and has a lifting height of 71 1/2″〜80 1/2″. With a 9,000lbs lifting capacity and a great price, this is the perfect lift for any shop or garage enthusiast by having both configuration of Symmetric and Asymmetric arms.
Click to download Product Brochure
Click to download Product Manual
Description
Features
• Dual direct drive hydraulic cylinders made to high standards
• Super-Asymmetric Arm design, makes finding the lift point of the car easier
• Single point safety release, allows the operator to disengage both columns simultaneously
• Self lubricating UHMW Polyethylene sliders and bronze bushings
• Clear floor design, provides unobstructed floor use
• Overhead safety shut off device measures vehicle damage
• Stackable rubber pads and 1.5″, 2.5″, 5″
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components
| Model | OH-9 |
| Lifting Capacity | 9,000 lbs (4,082 kg) |
| Lifting Time | 57S |
| A: Lifting Height | 71 1/2″〜80 1/2″ (1815〜2044mm) |
| B: Overall Height | 142 1/2″/ 150 1/2″ (3621/3821mm) |
| C: Overall Width | 135″ (3428mm) |
| D: Drive Thru Clearance | 99 1/2″ (2528mm) |
| E: Width Between Columns | 112 1/4″ (2850mm) |
| F: Minimum Pad Height | 3 1/2″ (90mm) |
| Motor | 2.0HP/220V/60Hz, Single Phase |
| Gross Weight | 1,515lbs (687kg) |
Detailed Images

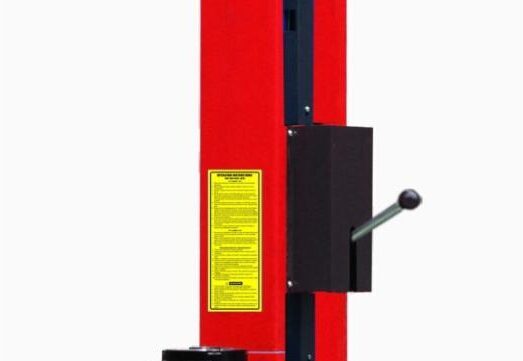

- Single point safety release makes it easier for operators to unlock both column locks from one column.

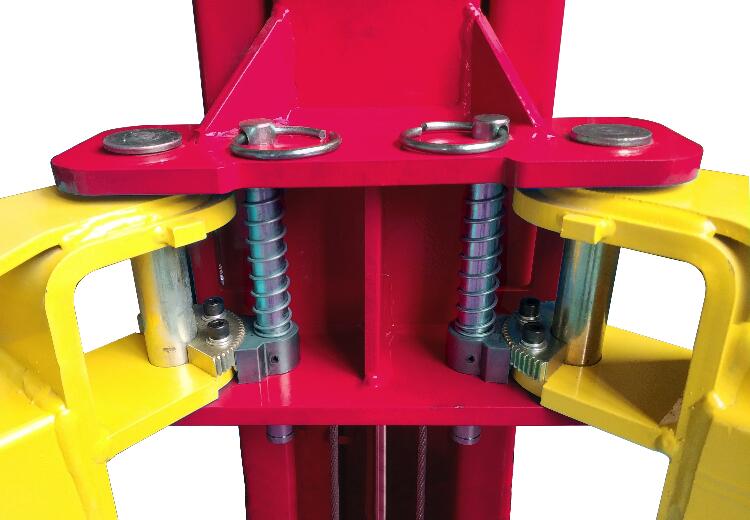

- Lifting arm lock automatic release device, high strength gear rack, more stable and safer.

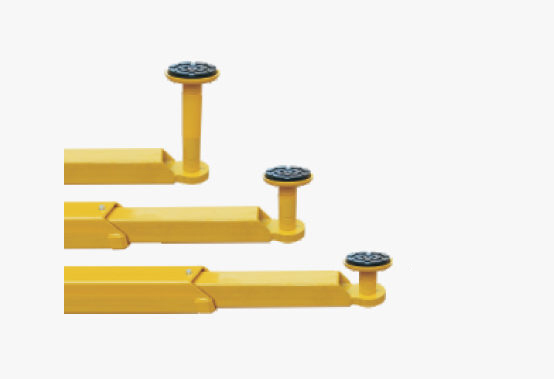

- Super asymmetric arms allow you to load different vehicles in an asymmetric or symmetric configuration. Self-lubricating UHMW polyethylene sliders, rubber door guards to protect your vehicle.

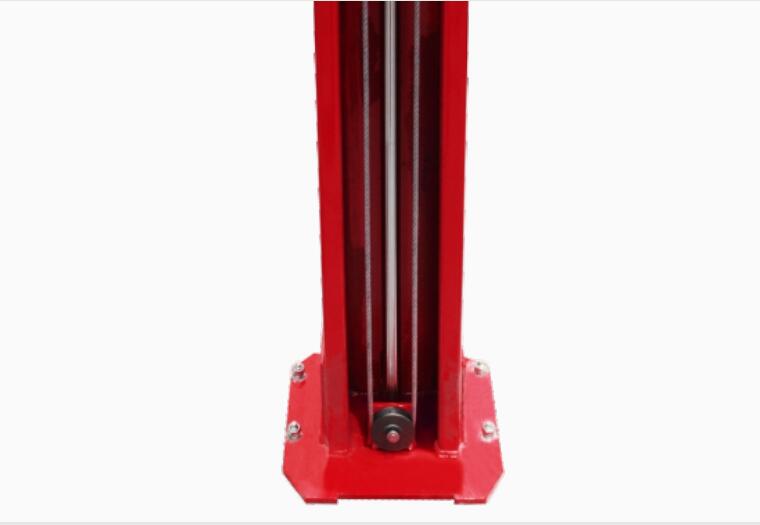

- Dual hydraulic direct-driven cylinders
- The stackable rubber pads package with 1.5″, 2.5″, 5″ extension adapters.
- Optional Saddle adaptors perfect choice for wide size SUV vehicles. Kits No.:20802

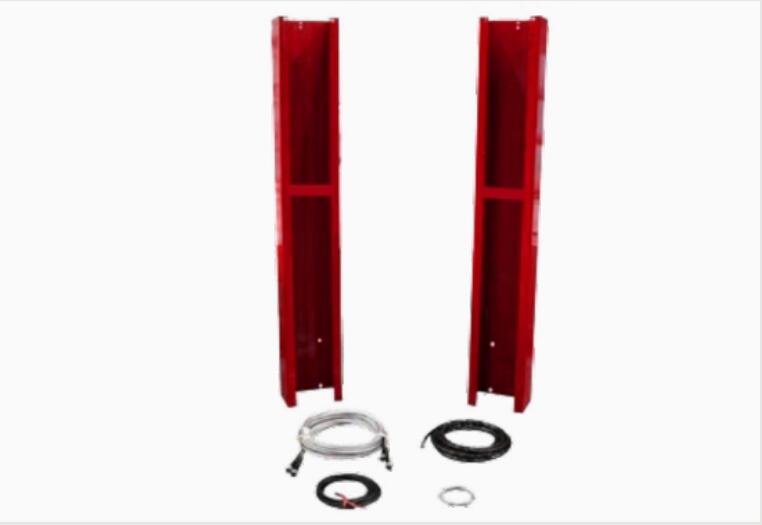

- Optional Height Extension Kits With this kits,the height can be adjusted from 3821mm(150 1/2″)to 4431mm(174 1/2″) Kits No.:20902（OH-9） Kits No.:21002(OH-10)
- Optional Width Extension Kits With these kits the width between posts is adjusted from112 1/4″ (2850mm) to 118 1/8″(3000mm). Kits No.:20906(OH-9 OH-10)

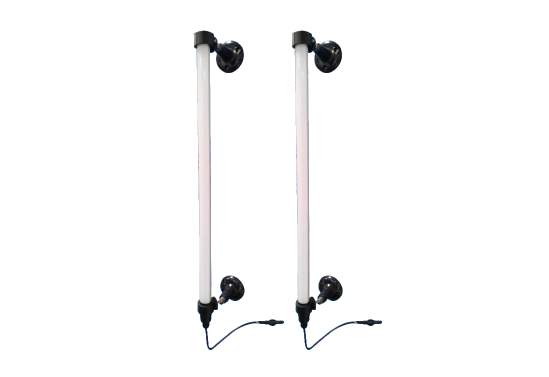

- Optional LED light for all two post lifts. Floor plate two post lifts LED light，Kits No.:20101; Clear floor two post lifts LED light，Kits 20101 plus extension cable 20103
