Danbury Automotive Lifts
OH-15
OH-15
Couldn't load pickup availability

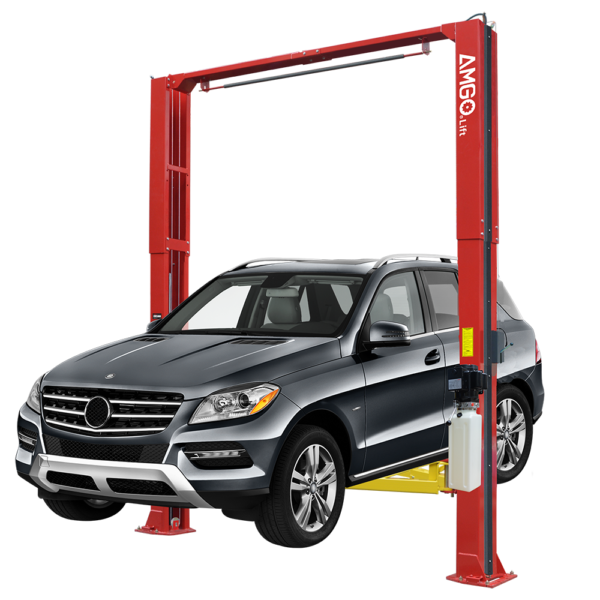

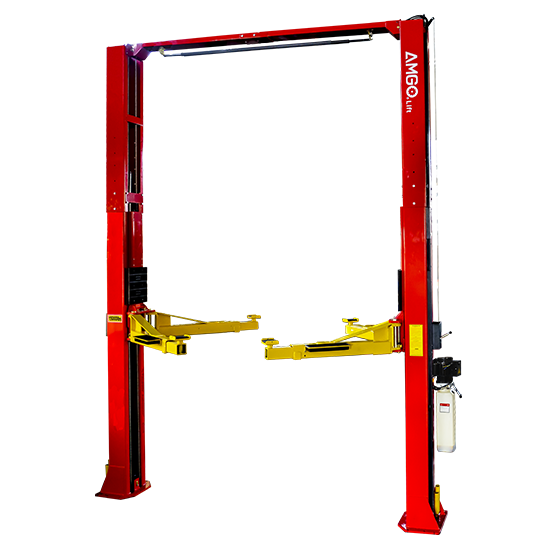

OH-15 two post lift are the new products developed by AMGO for heavy duty purpose with a lifting capacity up to 15000lbs. Heavy-duty construction,self-lubricating bush,sliders and high quality parts to make the lift almost no maintenance required.
Click to download Product Brochure
Click to download Product Manual
Description
Features
• 15,000 lbs capacity
• Single-point safety release
• 4 two-stages arms allowing to lift the trucks from short to long wheel base
• Automatic arm restraints keep the arms locked in their proper positions
• Self-lubricating UHMW Polyethylene sliders and bronze bushings
• Adjustable two height setting accommodate varying service ceiling heights
• Aircraft quality cable is used for synchronization
• Detachable foot guard and tool tray to allow for a clutter free work space
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components
Specifications
| Model | OH-15 |
| Lifting Capacity | 15,000 lbs (6,800 kg) |
| Lifting Time | 84S |
| A:Lifting Height | 75 1/4″ ~ 84 1/4″ (1912~2141mm) |
| B:Overall Height | 174″/ 198″ (4420/5029mm) |
| C:Overall Width | 150 3/4″ (3829mm) |
| D:Drive-Thru Clearance | 109 3/4″ (2787mm) |
| E:Width Between Columns | 123 1/2″ (3137mm) |
| F:Minimum Pad Height | 7 1/2″” (185mm) |
| Motor | 2.0HP/220V/60Hz,Single Phase |
| Gross Weight | 2,573 lbs (1167 kg) |
Detailed Images
- Single point safety release makes it easier for operators to unlock both columns from one column.
- Lifting arm lock automatic release device, high strength gear rack, more stable and safer.

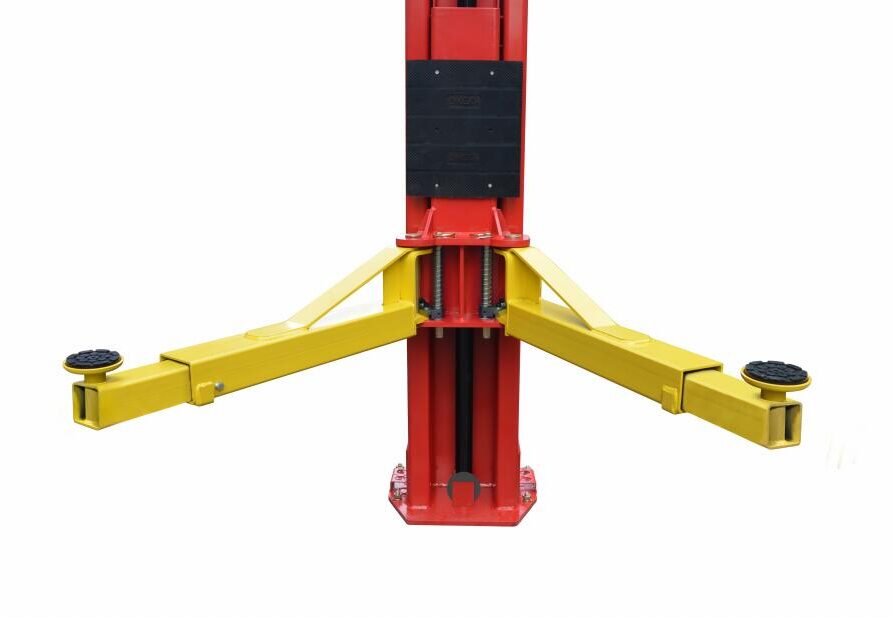

- The OH-15 is designed with 4 two-stages arms. it is tronger for heavy-duty trucks.
- The stackable rubber pads package with 1.5″, 2.5″, 5″ extension adapters.
- Optional saddle adapter. For light truck No.: 20802. For heavy-duty truck: 21103
- The Optional Base Plate Kits No.21501,lncluding extension frames,and 14 pcs of our standard Anchor Bolts.
- Optional LED light for all two post lifts. Floor plate two post lifts LED light，Kits No.:20101; Clear floor two post lifts LED light，Kits 20101 plus extension cable 20103
