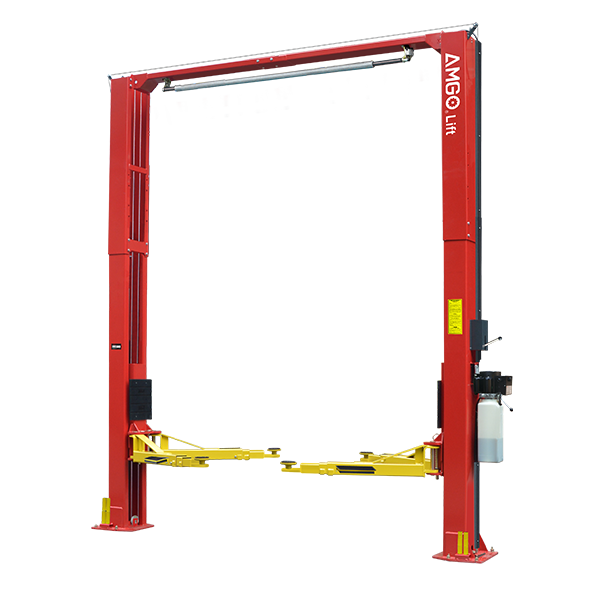

Our newest Heavy Duty two post lift: OH-12S is the ideal choice for shops and service centers with limited ceiling height. The OH-12S can be set to three different heights, only available at AMGO.
Click to download Product Brochure
Click to download Product Manual
Description
Features
- 12,000 lbs capacity
- Single-point safety lock release
- Exclusive: adjustable three height setting accommodates varying service ceiling heights
- 4 three-stage arm design allows to lift vehicles from short to long wheel base
- Automatic arm restraints keep the arms locked in their proper positions
- Self-lubricating UHMW Polyethylene sliders and bronze bushings
- Aviation standard durable cables used for synchronization
- Detachable foot guard and tool tray come standard
- 5-3-2 warranty: 5 years for steel construction, 3 years for hydraulic parts,and 2 years for electrical components.
Specifications
| Model | OH-12S |
| Lifting Capacity | 12,000 lbs (5,443 kg) |
| Lifting Time | 69S |
| A:Lifting Height | 72 1/2″ ~ 81 1/2″ (1842~2071mm) |
| B:Overall Height | 143 1/8″/155 1/8″/167 1/8″ (3635/3940/4245mm) |
| C:Overall Width | 150 3/4″ (3829mm) |
| D:Drive-Thru Clearance | 109 3/4″ (2787mm) |
| E:Width Between Columns | 123 1/2″ (3137mm) |
| F:Minimum Pad Height | 4 1/2″ (115mm) |
| Motor | 2.0HP/220V/60Hz,Single Phase |
| Gross Weight | 2,174 lbs (986 kg) |
Detailed Images
- Single point safety release makes it easier for operators to unlock both columns from one column.
- 4 three-stages arms suit for various vehicles from short to long wheel base.
- Automatic arm lock release device, high strength gear rack, more stable and safer.
- The pulley with Self-lubricating bronze bush
- Detachable foot guard and tool tray are equipped as standard
- The stackable rubber pads packaged with 1.5″, 2.5″, 5″ extension adapters.
- Optional saddle adapter. For light truck No.: 20802. For heavy-duty truck: 21103
- Optional Single Screw-up rubber Pad Assembly No.:20803
