Danbury Automotive Lifts

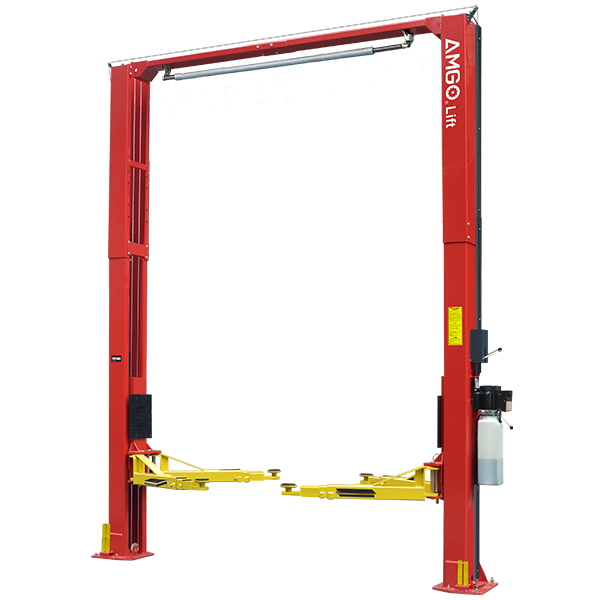

OH-12
OH-12
Couldn't load pickup availability
AMGO Heavy duty two post lifts are the best choice for heavy duty vehicles or trucks in commercial shops… stronger and higher!
Click to download Product Brochure
Click to download Product Manual
Description
Features
• 12,000 lbs capacity
• Single-point safety release

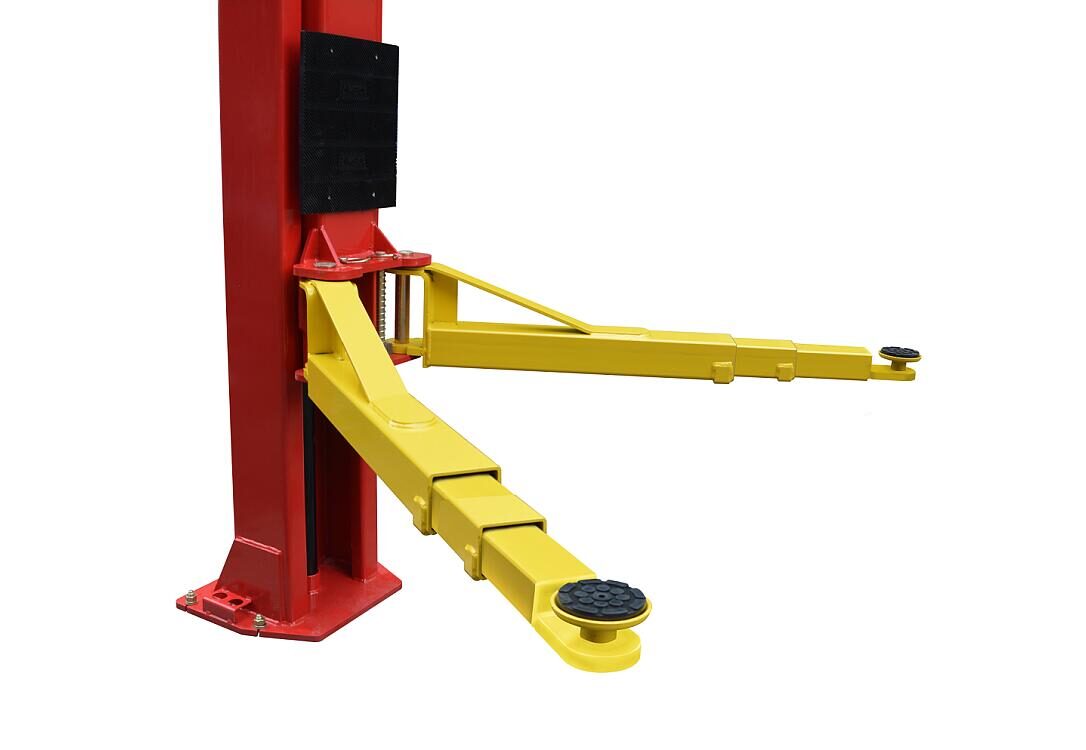

• 4 three-stages arms allowing to lift the trucks from short to long wheel base
• Automatic arm restraints keep the arms locked in their proper positions
• Self-lubricating UHMW Polyethylene sliders and bronze bushings
• Adjustable two height setting accommodate varying service ceiling heights
• Aircraft quality cable is used for synchronization
• Detachable foot guard and tool tray to allow for a clutter free work space
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components
Specifications
Model | OH-12 |
Lifting Capacity | 12,000 lbs (5,443 kg) |
Lifting Time | 69S |
A:Lifting Height | 72 1/2″ ~ 81 1/2″ (1842~2071mm) |
B:Overall Height | 174″/186″/198″ (4420/4725/5030mm) |
C:Overall Width | 150 3/4″ (3829mm) |
D:Drive-Thru Clearance | 109 3/4″ (2787mm) |
E:Width Between Columns | 123 1/2″ (3137mm) |
F:Minimum Pad Height | 4 1/2″ (115mm) |
Motor | 2.0HP/220V/60Hz,Single Phase |
Gross Weight | 2,317 lbs (1051 kg) |
Detailed Images

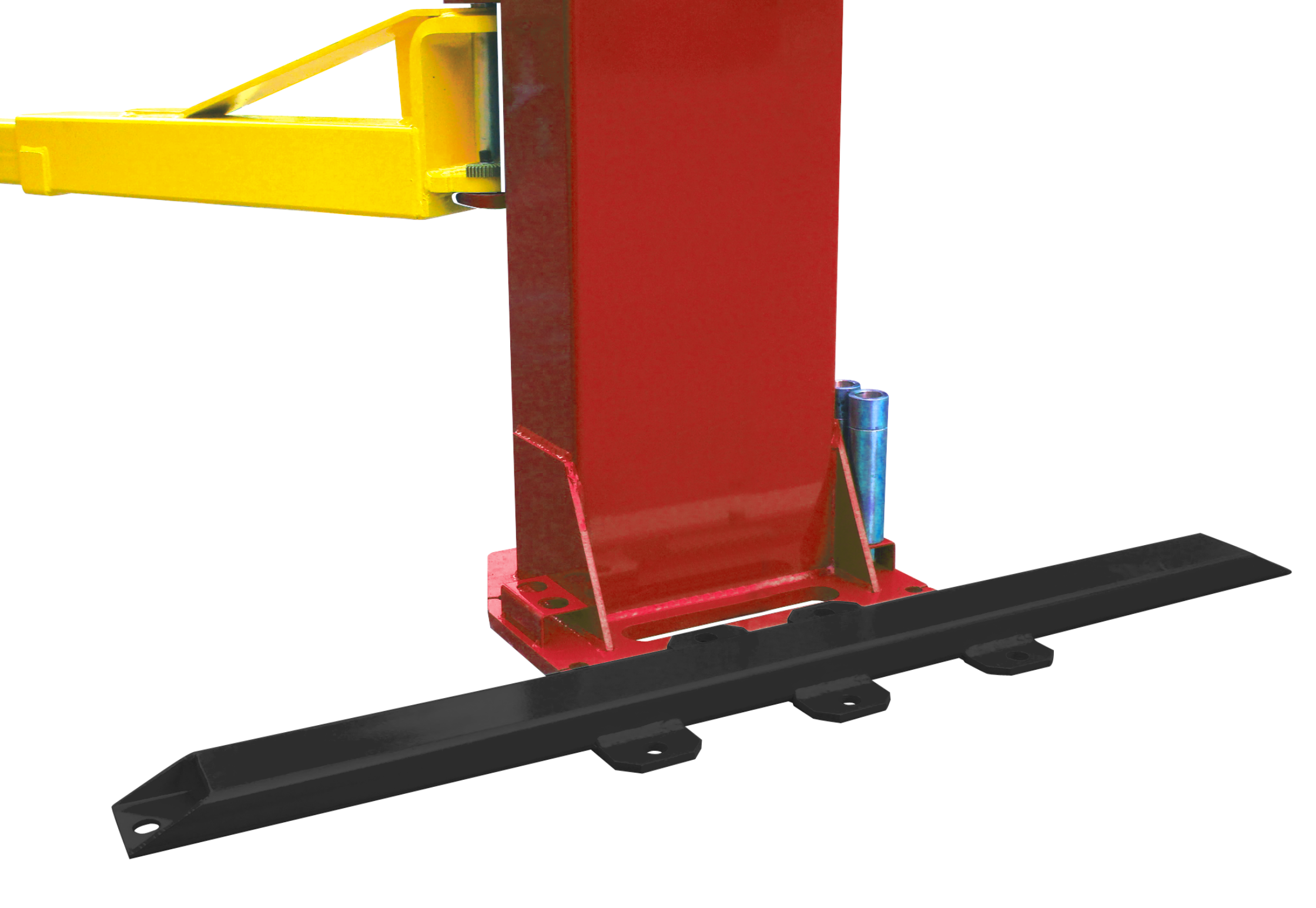

- The Optional Base Plate Kits No.21501,lncluding extension frames,and 14 pcs of our standard Anchor Bolts.
- Optional LED light for all two post lifts. Floor plate two post lifts LED light,Kits No.:20101; Clear floor two post lifts LED light,Kits 20101 plus extension cable 20103
