Description
Features
• Power unit stand with hand-release power unit mechanism
• Mechanical hand-release safety lock with automatic activation
• Wide platform with several slots on each side to apply vehicle tightening belts
• Hydraulic cylinder with flow restrictor for stable and smooth lowering of the vehicle
• Advanced features such as the plastic tool tray and rear tire removal cover

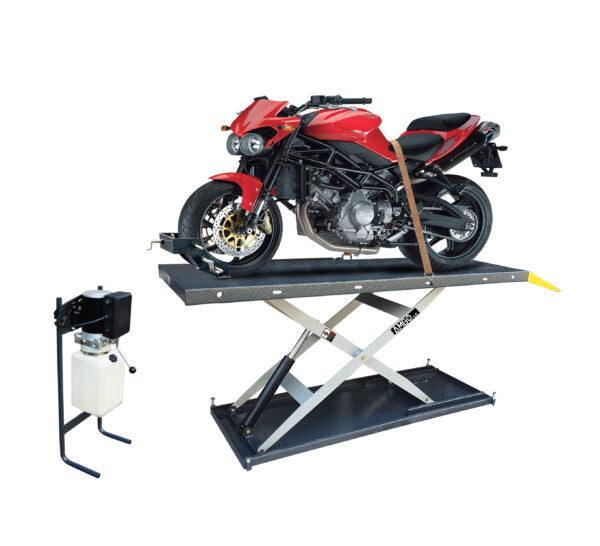

| Model | MC-1200 |
| Lifting Capacity | 1,200lbs |
| Lifting Time | 23s |
| A1: Lifting Height | 43″ (1090mm) |
| A2: Minimum Height | 6 1/8″ (155mm) |
| B:Overall Length(lnc.Ramp) | 106 1/4″ (2700mm) |
| C: Runway Length | 88 5/8″ (2250mm) |
| D:Overall Width | 29 1/2″ (750mm) |
| Gross Weight | 619lbs (281kg) |
| Motor | 1.0HP 110V/60Hz，single phase |
Detailed Images
- Front wheel vise Adjusted front wheel vise with Adjustable distance 410mm
- Rear tire removal cover Removable platform cover plate is convenitent for rear wheel changing
- Optional width extension kit Adding 600mm extra width on platfrom to be suitable for three or four-wheel motorcycle kits for.Kits NO.:MC001
- Motorcycle lifts install widened attachments can be lifting ATV after the car
- Automatically safety lock activating device,only available by AMGO!
- Optional length extension kit
- Vehicle tighten belt Tighten vehicle before lifting,shipped as standard.Kits No.:MC006
- Optional lifting jack lifting capacity：500kg Perfect for wheel removal Kits No.：MC005
- Pneumatis hydraulic pump
