Description
Features
• Automatic multiful safety locksd.
• Automatical safety lock release.
• Portable unit is easy to move with the power unit stand.
• High speed: From 105-600 mm(4 1/8″-23 5/8”) in just 50 seconds .
• Standard rubber pads included.

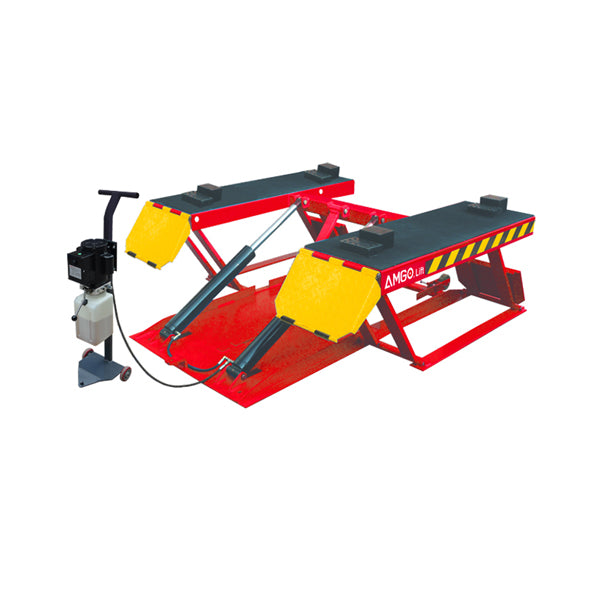

Model | LR10 |
Lifting Capacity | 10,000lbs |
Lifting Time | 50s |
A1: Max. Lifting Height | 23 5/8″ (600mm) |
A2: Minimum Height | 4 1/8″ (105mm) |
B: Runway Length | 53 1/4″ (1352mm) |
C: Overall Width | 70″ (1780mm) |
D: Width Between Runways | 34 1/8″ (868mm) |
E: Overall Length | 76 1/4″ (1938mm) |
F: Overall Runway Length(Inc.Ramp) | 66″ (1676mm) |
Gross Weight | 1,025lbs (465kg) |
Motor | 1.0HP 110V/60Hz, single phase |
