Description
Features
• Multiple safety locks with mechanical release.
• Portable, Easy to move with power unit stand.
• High speed: From 105-600 mm (4 1/8″-23 5/8″) in just 25 seconds.
• High density rubber pads included.

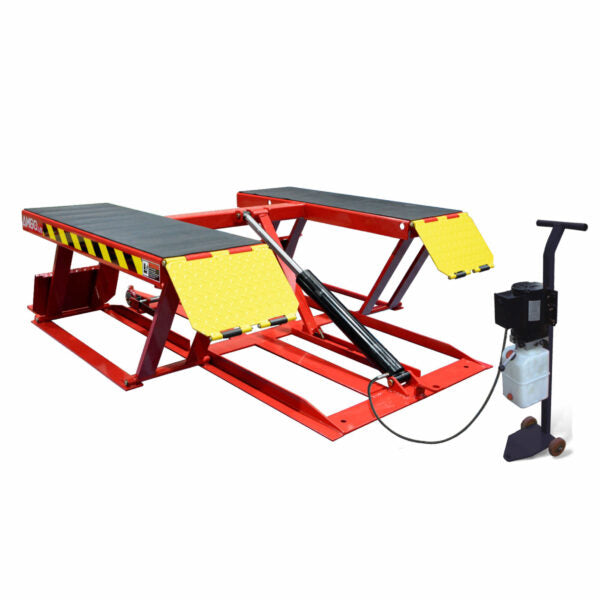

| Model | LR06 |
| Lifting Capacity | 6,000lbs |
| Lifting Time | 25s |
| A1: Max. Lifting Height | 23 5/8″ (600mm) |
| A2: Minimum Height | 4 1/8″ (105mm) |
| B: Runway Length | 53 1/4″ (1352mm) |
| C: Overall Width | 70″ (1780mm) |
| D: Width Between Runways | 34 1/8″ (868mm) |
| E: Overall Length | 76 1/4″ (1938mm) |
| Gross Weight | 849lbs (385kg) |
| Motor | 1.0HP 110V/60Hz,single phase |
Detailed Images
- Rubber Lift Pads 1 1/2″ height
- Multiple safety locks with mechanical release.
Shipping Information
