Description
Features
• 12,000lbs capacity for main scissor lift and 9,000lbs capacity for secondary scissor lift
• Synchronization cylinders system equipped with hose burst valves
• Safety stop device at the height of 11 3/4″, both control buttons are needed to lower the lift from 11 3/4″ to ground, with tone alarm for added safety
• Skid proof diamond runways and optional adjustable turnplate pockets
• Self-lubricating UHMW polyethylene sliders and bronze bushings

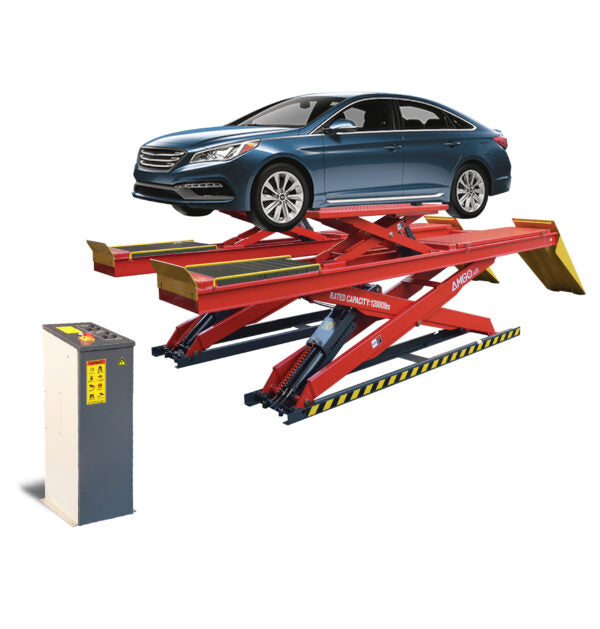

| Model | DX-12A |
| Main Scissor Lifting Capacity | 12,000 lbs (5,500 kg) |
| Lifting Time | 63S |
| A1: Max. Lifting Height | 73 5/8″ (1870mm) |
| A2: Minimum Height | 12 5/8″ (320mm) |
| B: Runway Length | 196 1/2″ (4991mm) |
| C: Overall Width | 86 1/4″ (2190mm) |
| D: Width Between Runways | 37″ (940mm) |
| E: Overall Length(Inc.Ramps) | 257″ (6527mm) |
| F: Min.Four Wheel Align | 85 7/8″ (2180mm) |
| G: Max.Four Wheel Align | 166 1/2″ (4230mm) |
| H: Max.Two Wheel Align | 172 7/8″ (4390mm) |
| Secondary Scissor Lifting Capacity | 9,000lbs (4000kg) |
| I: Secondary Scissor Lifting Height | 16 1/2″ (420mm) |
| J: Secondary Scissor Length | 63″~74″ (1600~1880mm) |
| Gross Weight | 5,706 lbs (2,588 kg) |
| Motor | 2.0HP 220V/60Hz Single Phase |
Detailed Images
- Pull-out shelf for extra room allows more effective working environments
- Mechanical lock and air-driven safety release.
- Optional LED light kits is fitted for every model of AMGO Scissors lifts. LED Kits No.:PX010
- Optional extension kits to extend the platform 11 7/8″ (300mm). Kits No.:PX001(AX-12) Kits No.:PX002(AX-12A) Kits No.:PX003(AX-16A)
- Turnplate Kits No.40101
- Optional airline kits. Easy and convenient installation for all models of rolling jacks with a pneumatic pump. Kits No.:PX004
