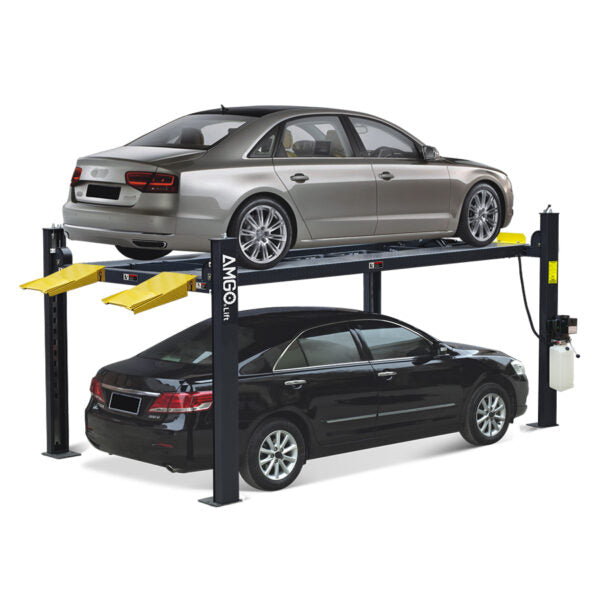

The 407-P is a true space-saving powerhouse. The perfect parking lift for shops or home garage with limited floor space. The 407-P requires no special foundation or complicated installation.
Click to download Product Brochure
Click to download Product Manual
Description
Features
- 7,000lbs lifting capacity
- AMGO exclusive hidden safety locks and manual single-point lock release
- Multi safety locks in each column
- Adjustable lock ladder
- Automatic safety locks combined with redundant anti-fall devices
- Double-S shaped columns for increased strength
- Non-slip platform
- Flexible Design: power side column can be installed at any corner
- AMGO 5-3-2 Warranty
| Model | 407-P |
| Lifting Capacity | 7,000lbs |
| Lifting Time | 68s(110V) 26s(220V) |
| A: Overall Length (Inc Ramps) | 185 1/2″ (4712mm) |
| B: Overall Length (No Inc. ramps) | 152″ (3862mm) |
| C: Overall Width | 94 7/8″ (2409mm) |
| D: Width Between Posts | 85 3/8″ (2167mm) |
| E: Max. Lifting Height | 73 3/4″ (1872mm) |
| F: Overall Height | 82 7/8″ (2105mm) |
| G: Minimum Height | 5 3/8″(135mm) |
| H: Max. Underneath Height | 69 3/4″ (1772mm) |
| I: Drive-Thru Clearance | 77″ (1956mm) |
| J: Width Between Runways | 37″ (940mm) |
| K: Outside Edge of Runways | 74 3/8″ (1890mm) |
| Gross Weight | 1,543lbs(700kg) |
| Motor | 1.0HP 110V/60Hz; 2.0HP 220V/60Hz |
Shipping Information
20′ container can load 12 units.
40′ HQ container can load 36 units.
