Danbury Automotive Lifts

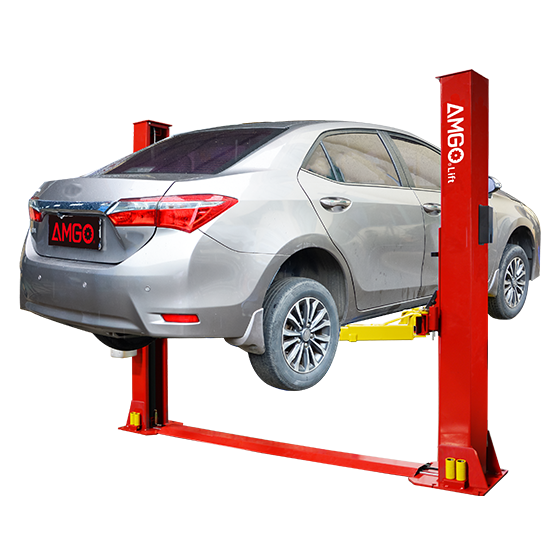

BP-9X
BP-9X
Couldn't load pickup availability
The BP-9X is a base-plate two-post lift designed for low ceiling garages. The total column height of 111 7/8″ allows this lift to be installed in almost any professional or home garage with a ceiling higher than 9.5 feet. The BP-9X features symmetric arms, and automatic arm restraints. The BP-9X also has a single point release switch to make it easier to unlock both column locks from one column.
Click to download Product Brochure
Click to download Product Manual
Description
Features
• 9,000 lbs capacity, commercial grade 2-post base plate lift is designed andbuilt for professional shops and home garages to fit low ceiling workshop environment without overhead obstructions.
• Single-point safety release allows the operator to unlock the safety locks from both columns simultaneously. There is also a dual locking system for additional safety.
• 4 three-stage arms are suitable for more vehicles.
• Automatic arm restraints keep the arms locked in their proper positions.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Aircraft quality cable is used for synchronization.
• Detachable foot guard and tool tray allow for a clutter free workspace.
| Model | BP-9X |
| Lifting Capacity | 9,000 lbs（4,082 kg） |
| Lifting Time | 49S |
| A: Lifting height | 76 3/8″ ~ 85 3/8″ (1940~2169mm) |
| B: Overall Height | 111 7/8″ (2841mm) |
| C: Overall Width | 136 1/4″ （3460mm） |
| D: Drive-Thru Clearance | 100 3/4″ （2560mm） |
| E: Width Between Columns | 112 1/4″ (2850mm) |
| F: Minimum Pad Height | 3 1/2″ （90mm） |
| Motor | 2.0HP/220V/60Hz,Single Phase |
| Gross Weight | 1,590 lbs（721 kg） |
Detailed image
- The stackable rubber pads package with 1.5″, 2.5″, 5″ extension adapters.
- 4 three-stage arms are suitable for more vehicles.
- Single point safety release makes it easier for operators to unlock both column locks from one column.
- Two locks, one release. Only available from AMGO.
- Optional base plate, Kit No: 20903
- Optional Saddle adaptors perfect choice for wide size SUV vehicles. Kits No.:20802
- Optional LED light for all two post lifts. Floor plate two post lifts LED light，Kits No.:20101; Clear floor two post lifts LED light，Kits 20101 plus extension cable 20103
