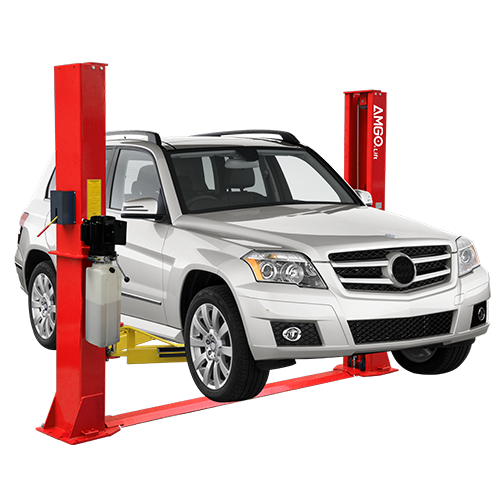

AMGO BP Series Base plate two post lifts are stronger and more convenient to operate than most all other lifts in the world. The rugged BP-12 can lift vehicles up to 12,000 lbs. and is designed with no overhead obstructions for low ceiling professional and home garages to increase headroom. AMGO two post lifts are manufactured according to high-quality standards, while using critical materials and parts choosing, with advanced features and innovative technology.
Click to download Product Brochure
Click to download Product Manual
Description
Features
• 12,000 lbs capacity, chain-driven 2 post lift with base plate heavy duty design
• Single-point safety release allows the operator to unlock the safety locks from both columns
simultaneously. There is also a dual locking system for additional safety
• 4 three-stages arms suitable for more vehicles
• Automatic arm restraints keep the arms locked in their proper positions
• Width adjustment:width between columns 118 1/8″(3000mm)and 123 1/2″(3137mm)
• Self-lubricating UHMW Polyethylene sliders and bronze bushings
• Aircraft quality cable is used for synchronization
• Detachable foot guard and tool tray to allow for a clutter free work space
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two years on Electrical Components
| Model | BP-12 |
| Lifting Capacity | 12,000 lbs (5,443 kg) |
| Lifting Time | 65S |
| A:Lifting Height | 73 1/4″ ~ 82 1/4″ (1860~2089mm) |
| B:Overall Height | 122 1/2″ (3110mm) |
| C:Overall Width | 145 3/8″ / 150 3/4″ (3692 / 3829mm) |
| D:Drive-Thru Clearance | 104 1/2″/ 109 7/8″ (2653 / 2790mm) |
| E:Width Between Columns | 118 1/8″/ 123 1/2″ (3000 / 3137mm) |
| F:Minimum Pad Height | 4 3/4″” (120mm) |
| Motor | 2.0HP/220V/60HZ,Single Phase |
| Gross Weight | 2,150 lbs (975 kg) |
Detailed Images

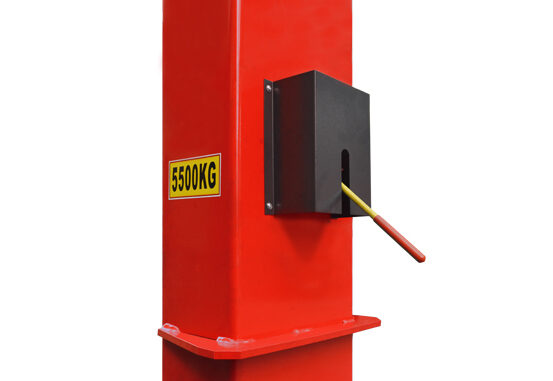

- Single-point safety release makes it easier for operators to unlock both column locks from one column.

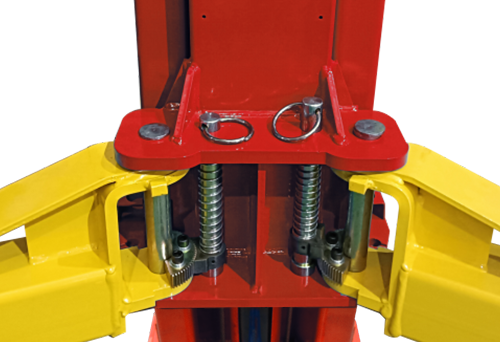

- Lifting arm lock automatic release device, high strength gear rack, more stable and safer.

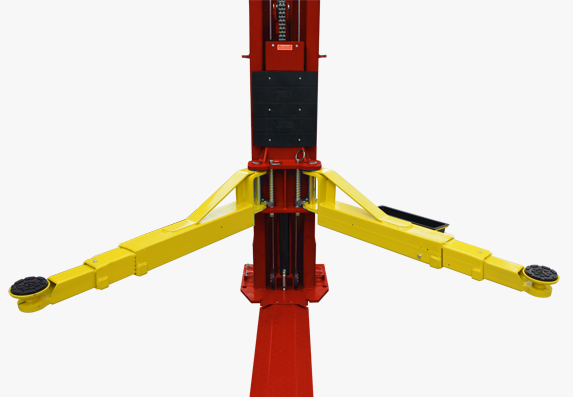

- 4 three-stage arms are suitable for more vehicles.
- The chain protection cover prevents the chain from slipping off.

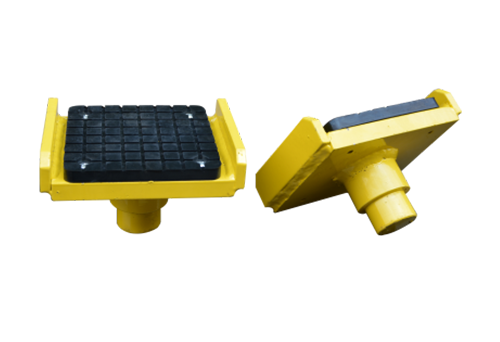

- The stackable rubber pads package with 1.5″, 2.5″, 5″ extension adapters.
- Optional saddle adapter. kits No. for light truck:20802 kits No. for heavy-duty truck:21103
- The Optional Base Plate Kits No.21501,lncluding extension frames,and 14 pcs of our standard Anchor Bolts.
- Optional LED light for all two post lifts. Floor plate two post lifts LED light，Kits No.:20101; Clear floor two post lifts LED light，Kits 20101 plus extension cable 20103
