Danbury Automotive Lifts

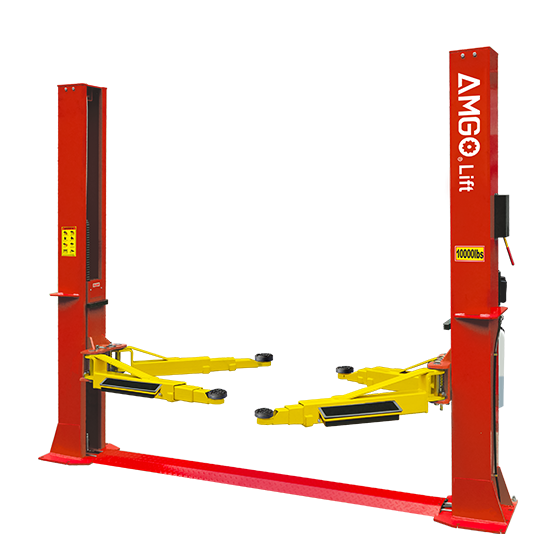

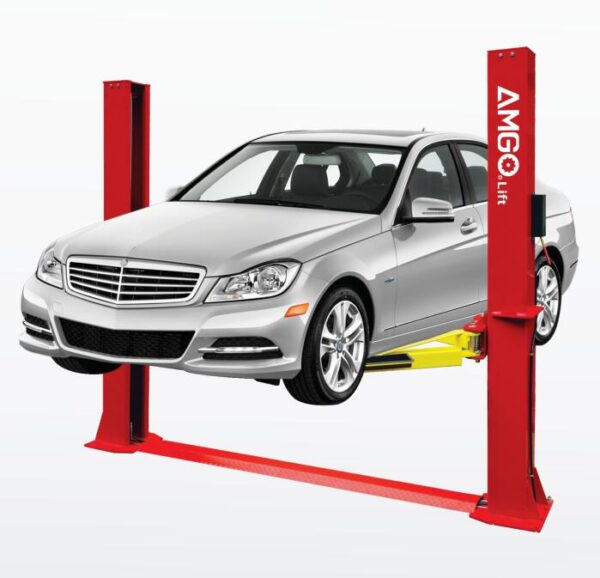

BP-10
BP-10
Couldn't load pickup availability
AMGO BP series base plate two column lift are stronger and easier to operate than any other lifter in the world. The rugged BP-10 can lift up to 10,000lbs vehicles. It is designed without overhead barriers and suitable for professional and family garages with low ceilings to increase headroom. AMGO’s two column lifts are manufactured to high quality standards, using critical materials and components, with advanced features and innovative technology.
Description
Features
• 10,000 lbs capacity, commercial grade 2-post base plate lift is designed and built for any professional shops and home garages to fit low ceiling workshop environment without overhead obstructions
• Single-point safety release allows the operator to unlock the safety locks from both Columns simultaneously. There is also a dual locking system for additional safety
• 4 three-stage arms are suitable for more vehicles
• Automatic arm restraints keep the arms locked in their proper positions
• Self-lubricating UHMW Polyethylene sliders and bronze bushings
• Aircraft quality cable is used for synchronization
• Detachable foot guard and tool tray allow for a clutter free work space
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two years on Electrical Components
| Model | BP-10 |
| Lifting Capacity | 10,000lbs (4,536kg) |
| Lifting Time | 62S |
| A: Lifting height | 76 3/8″ ~ 85 3/8″ (1940~2169mm) |
| B: Overall Height | 111 7/8″ (2841mm) |
| C: Overall Width | 139 1/8″ (3534mm) |
| D: Drive-Thru Clearance | 100 3/4″ (2560mm) |
| E: Width Between Columns | 112 1/4″ (2850mm) |
| F: Minimum Pad Height | 3 1/2″ (90mm) |
| Motor | 2.0HP/220V/60Hz,Single Phase |
| Gross Weight | 1,697lbs (770kg) |
Detailed Images
- The stackable rubber pads package with 1.5″, 2.5″, 5″ extension adapters.

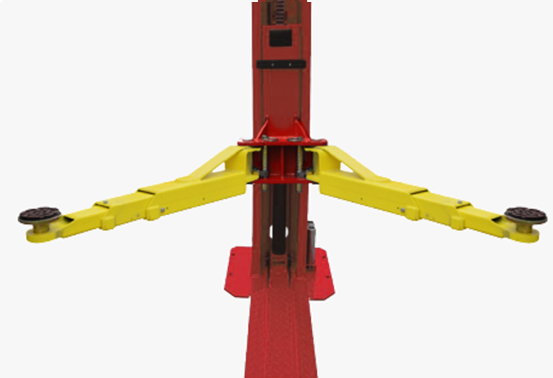

- 4 three-stage arms are suitable for more vehicles.

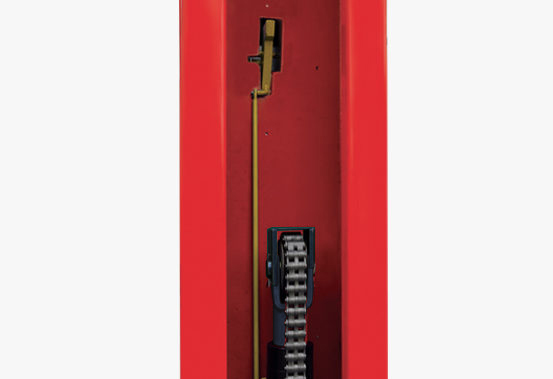

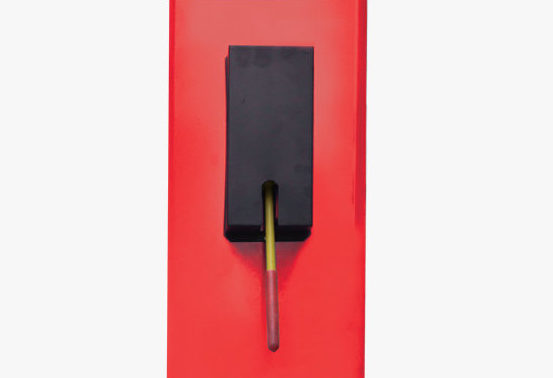

- Single point safety release makes it easier for operators to unlock both column locks from one column.
- Two locks, one release. Only available from AMGO.

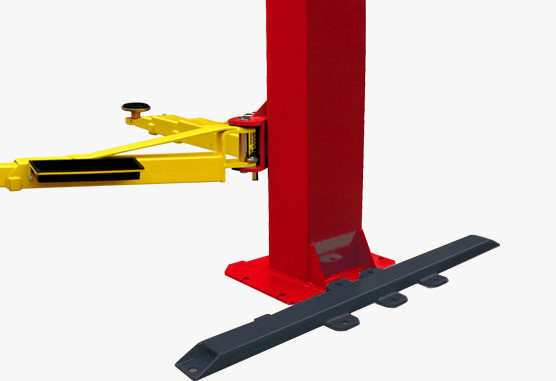

- Optional base plate, Kit No: 20903
- Optional Saddle adaptors perfect choice for wide size SUV vehicles. Kits No.:20802
- Optional LED light for all two post lifts. Floor plate two post lifts LED light，Kits No.:20101; Clear floor two post lifts LED light，Kits 20101 plus extension cable 20103
