Description
Features
- 9,000lbs lifting capacity
- High lifting rise: 82”
- AMGO exclusive hidden safety lock and manual single-point release device
- Multi safety locks in each column
- Adjustable lock ladder
- Automatic safety locks combined with redundant anti-fall devices
- Double-S shaped columns for increasedthe columns strength
- Non-slip platform
- Standard configuration with 4 wheel stops which is more safe
- Flexible Design: power side column can be installed at any corner
- Designed portable,it can be moved easily by using the optional caster kits
- 220V or 110V single phase power unit
- AMGO 5-3-2 Warranty

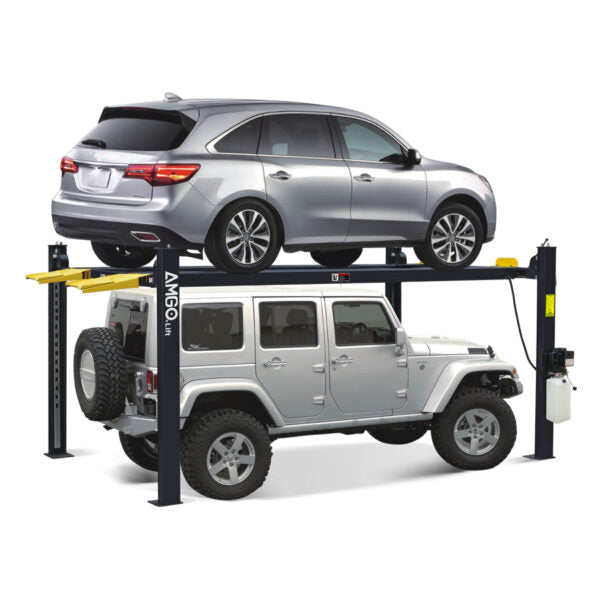

| Model | 409-HP |
| Lifting Capacity | 9,000lbs |
| Lifting Time | 122s(110V) 46s(220V) |
| A：Overall Length(Inc. Ramps) | 234 1/2″ (5957mm) |
| B：Overall Length(No Inc. Ramps) | 200 3/4″ (5100mm) |
| C：Overall Width | 126 1/4″ (3206mm) |
| D：Width Between Posts | 112 5/8″ (2860mm) |
| E：Max. Lifting Height | 87 3/4″ (2227mm) |
| F：Overall Height | 96 5/8″ (2455mm) |
| G：Minmum Height | 6 1/8″ (155mm) |
| H：Max. Underneath Height | 83″ (2107mm) |
| I：Drive-Thru Clearance | 98 1/4″ (2496mm) |
| J：Width Between Runways | 42 3/8″ (1077mm) |
| K：Outside Edge of Runways | 82 3/8″ (2093mm) |
| Gross Weight | 1,993lbs (904kg) |
| Motor | 1.0HP 110V/60Hz; 2.0HP 220V/60Hz |
Shipping Information
20′ container can load 12 units.
40′ container can load 24 units.
