Danbury Automotive Lifts
408-HP
408-HP
Regular price
$3,795.00 USD
Regular price
Sale price
$3,795.00 USD
Unit price
per
Couldn't load pickup availability

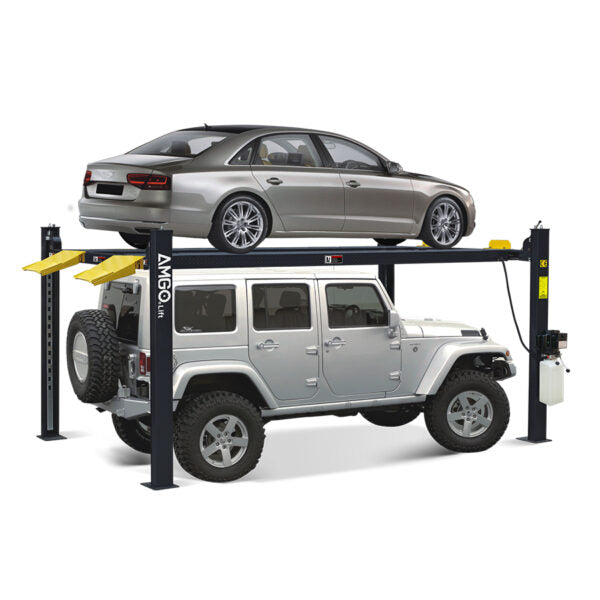

Professional Deluxe 4-post Parking Lifts, one of the best 4-post parking lifts in the market with extremly high lifting .
Click to download Product Manual
Description
Features
- 8,000lbs lifting capacity
- High lifting rise: 82”
- AMGO exclusive hidden safety locks and manual single-point lock release
- Multi safety locks in each column
- Adjustable lock ladder
- Automatic safety locks combined with redundant anti-fall devices
- Double-S shaped columns for increased strength
- Non-slip platform
- Flexible Design: power side column can be installed at any corner
- AMGO 5-3-2 Warranty
| Model | 408-HP |
| Lifting Capacity | 8,000lbs |
| Lifting Time | 83s(110V) 31s(220V) |
| A: Overall Length (Inc Ramps) | 207″ (5257mm) |
| B: Overall Length (No Inc ramps) | 173 1/4″ (4400mm) |
| C: Overall Width | 109 5/8″ (2784mm) |
| D: Width Between Posts | 96″ (2438mm) |
| E: Max. Lifting Height | 87 3/4″ (2227mm) |
| F: Overall Height | 96 5/8″ (2455mm) |
| G: Minmum Height | 6 1/8″(155mm) |
| H: Max. Underneath Height | 83″ (2107mm) |
| I: Drive-Thru Clearance | 81 5/8″ (2074mm) |
| J: Width Between Runways | 37″ (940mm) |
| K: Outside Edge of Runways | 74 3/8″ (1890mm) |
| Gross Weight | 1,704lbs(773kg) |
| Motor | 1.0HP 110V/60Hz; 2.0HP 220V/60Hz |
Shipping Information
20′ container can load 12 units.
40′ container can load 24 units.
